LSG Series Multi-Head Integrated Laser Measurement and Control System
Designed for simultaneous outer diameter measurement of multiple ultra-fine wires, metallic micro-drawn wires, and gold wires.
Video
Principle Principle




The laser beam is emitted from a semiconductor laser, reflected by a multi-faceted mirror and a plane mirror, and then passes through a collimating F(θ) lens to scan the measured object in parallel alignment. The shadow of the beam formed by the measured object is focused through the receiver lens and converted into an electronic signal. The size of the measured object is calculated based on the time taken for the beam to be blocked and form a shadow.


LSG-3000

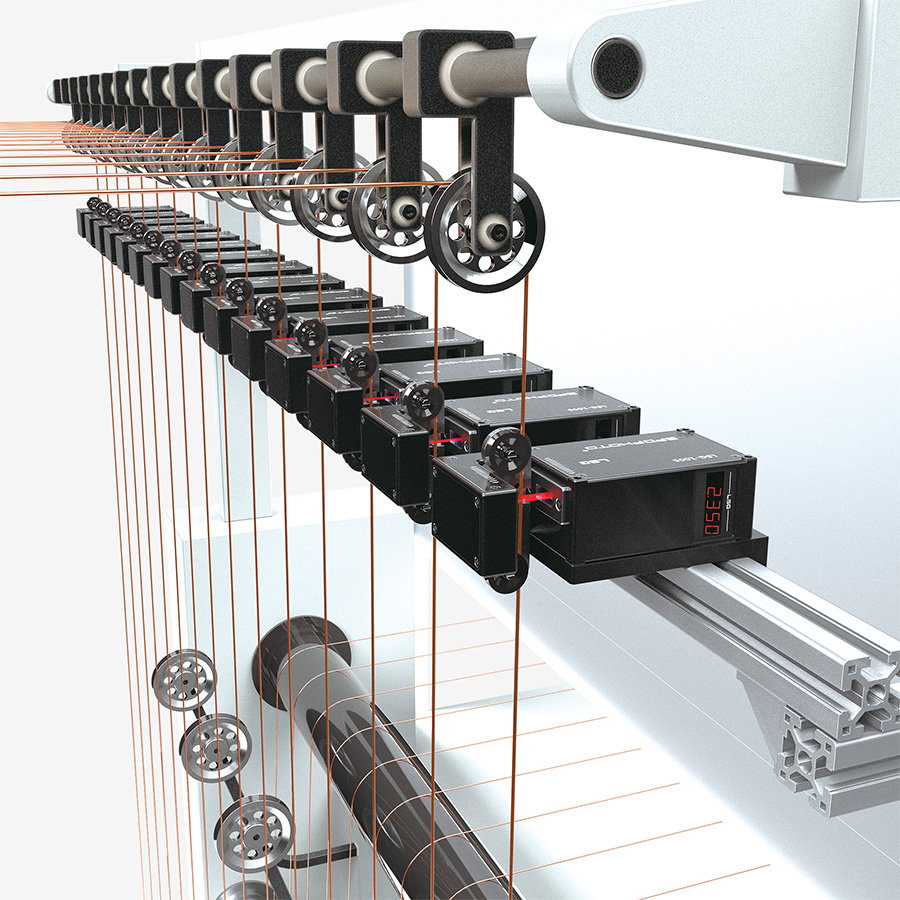

Proven multi-wire production line measurement solution: Simultaneously detects up to 48 production lines, featuring compact measurement heads.




Applicable diameter range

0.015mm - 3mm

Accuracy±0.3μm
Repeatability±0.1μm
Measurement Modes
Outer diameter measurement
Outer diameter measurement
Technical Features
This system utilizes high-speed DSP technology to simultaneously perform data acquisition, computation, and communication, ensuring each measurement head delivers exceptional accuracy and reliability.


LSG-3000 Multi-Head Integrated Laser Measurement and Control System:

    High-cost performance online outer diameter detection system

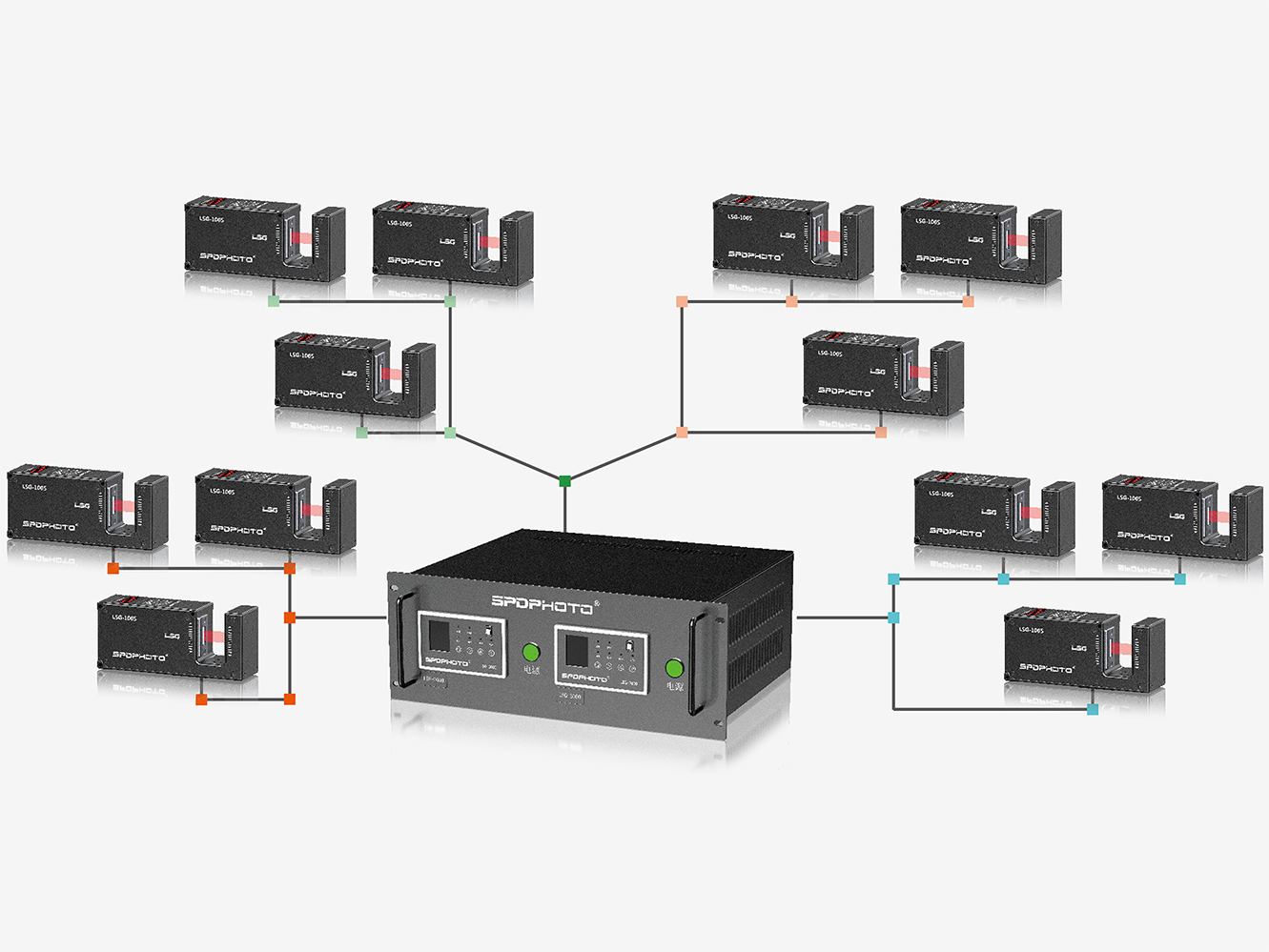

    Supports up to 48 outer diameter detection sensor heads
        Utilizes high-speed DSP processing system for simultaneous data acquisition, calculation, and communication
    Features individual alarm functions and data printing for each sensor head
    Includes 2 independent PI control signal outputs
    Compact sensor heads, easy to install and maintain

Main Applications:

    Extremely fine wires
    Metal wire drawing lines
    Diamond wires
    Tungsten wires
    Optical fibers
    Nylon wires
    Enameled wires



















LSG-3000 Multi-Head Integrated Laser Measurement and Control System:

A cost-effective online outer diameter detection system that can drive up to 48 measurement heads simultaneously. Utilizing high-speed DSP processing technology, it completes data acquisition, calculation, and communication transmission, ensuring high precision and reliability for each measurement head.

Equipped with 2 independent PI control signal outputs, it responds quickly to size deviations and eliminates errors, achieving more precise and stable diameter control. This allows for high accuracy and stable real-time adjustments, reducing reliance on manual adjustments and errors, thereby improving production efficiency and product quality.

Compact and Convenient:

The LSG-3000's measurement heads are compact and easy to install and maintain, making it suitable for various production environments. It performs well in tight spaces and on production lines that require frequent adjustments.




















Reliable Choice for Modern Production Lines:

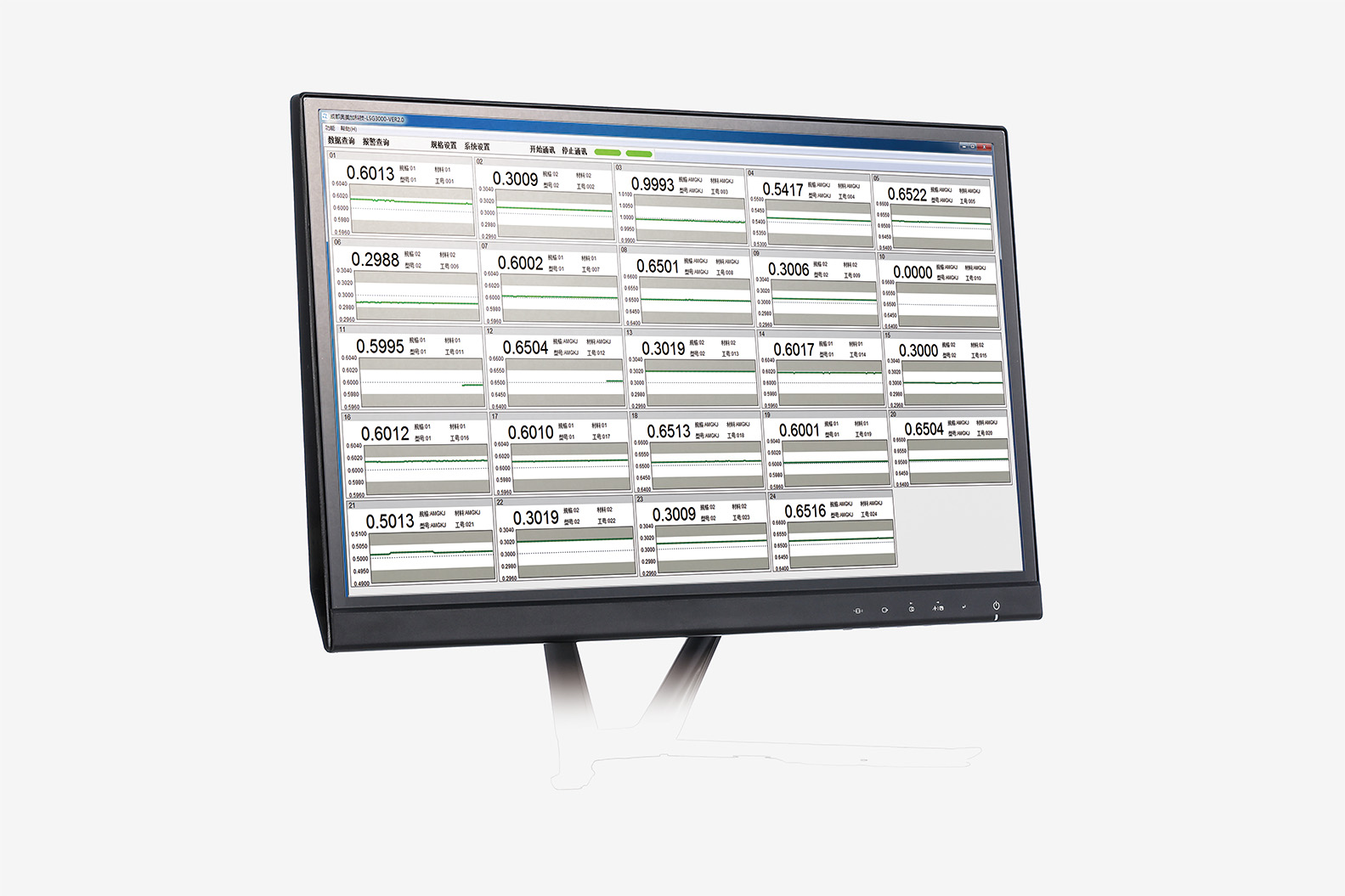

The LSG-3000 comes with specialized data processing software that provides real-time data curve display and individual alarm functions. Data can be exported for intuitive viewing. Additionally, the system supports on-demand printing of measurement data from multiple detection sensors, ensuring records are saved and backed up.





Detailed Parameters
Models LSG-3000
meature head LSG-1005
Number of axes 1axis
Minimum Resolution 0.0001mm
Measuring range 0.015-3mm
Accuracy ±0.3μm±0.01%*D
Repeatability ±0.1μm±0.005%*D
sampling frequency 800Hz
Alarm output 24V，1A(contact load)
Communication RS-485/MODBUS
PI control Optional
Power supply AC 220V 50Hz
Display method PC
Maximum connections 48 measurement heads
Data collection and analysis Professional analysis software
transparent materials Supports
Ambient Temperature 0 to +50℃(32 to 122°F)
Ambient Humidity 35% to 85% RH, No condensation
Measurement Host Dimensions 482x390x176(mm)
Dimensions 160×70×45.5(mm)
