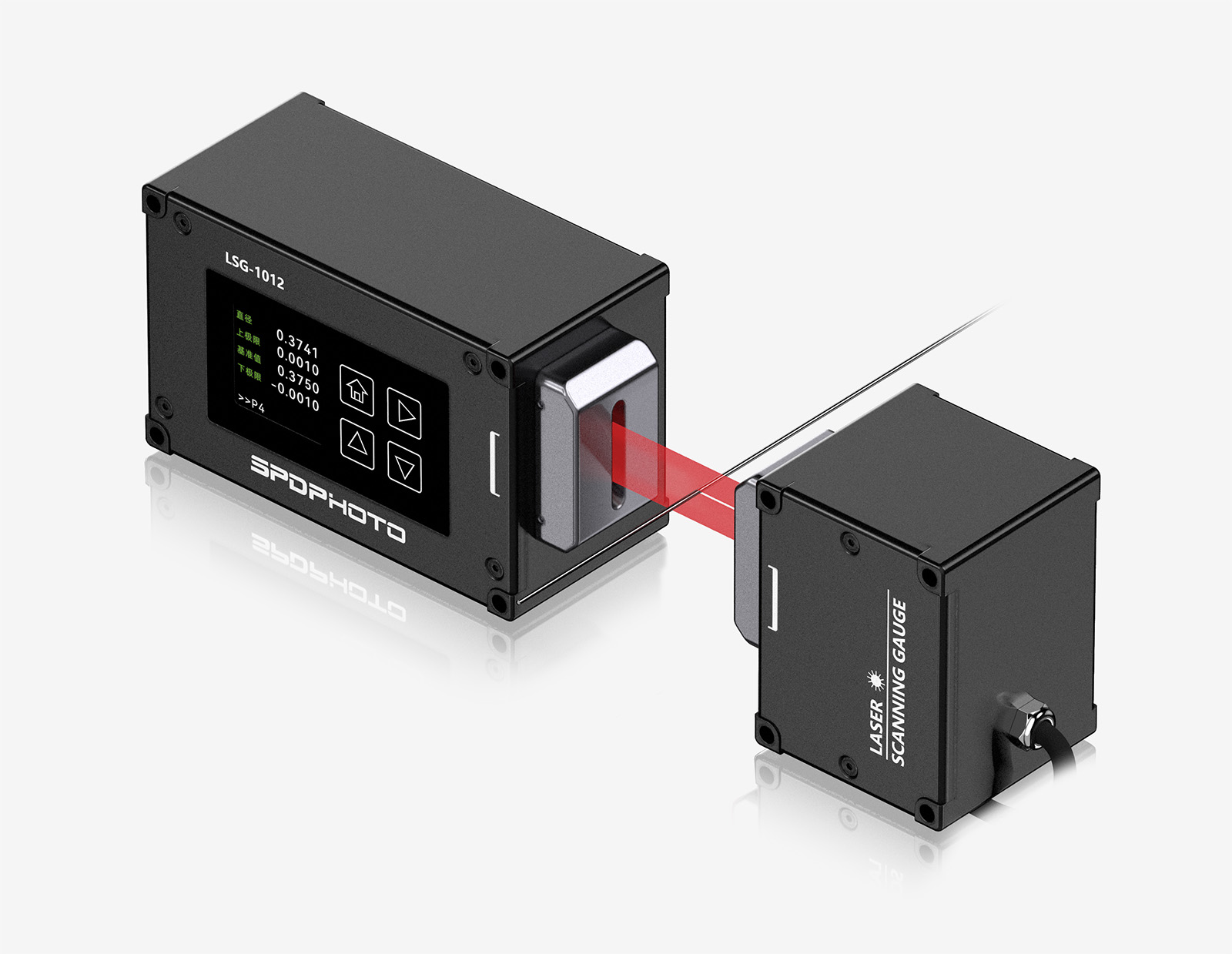

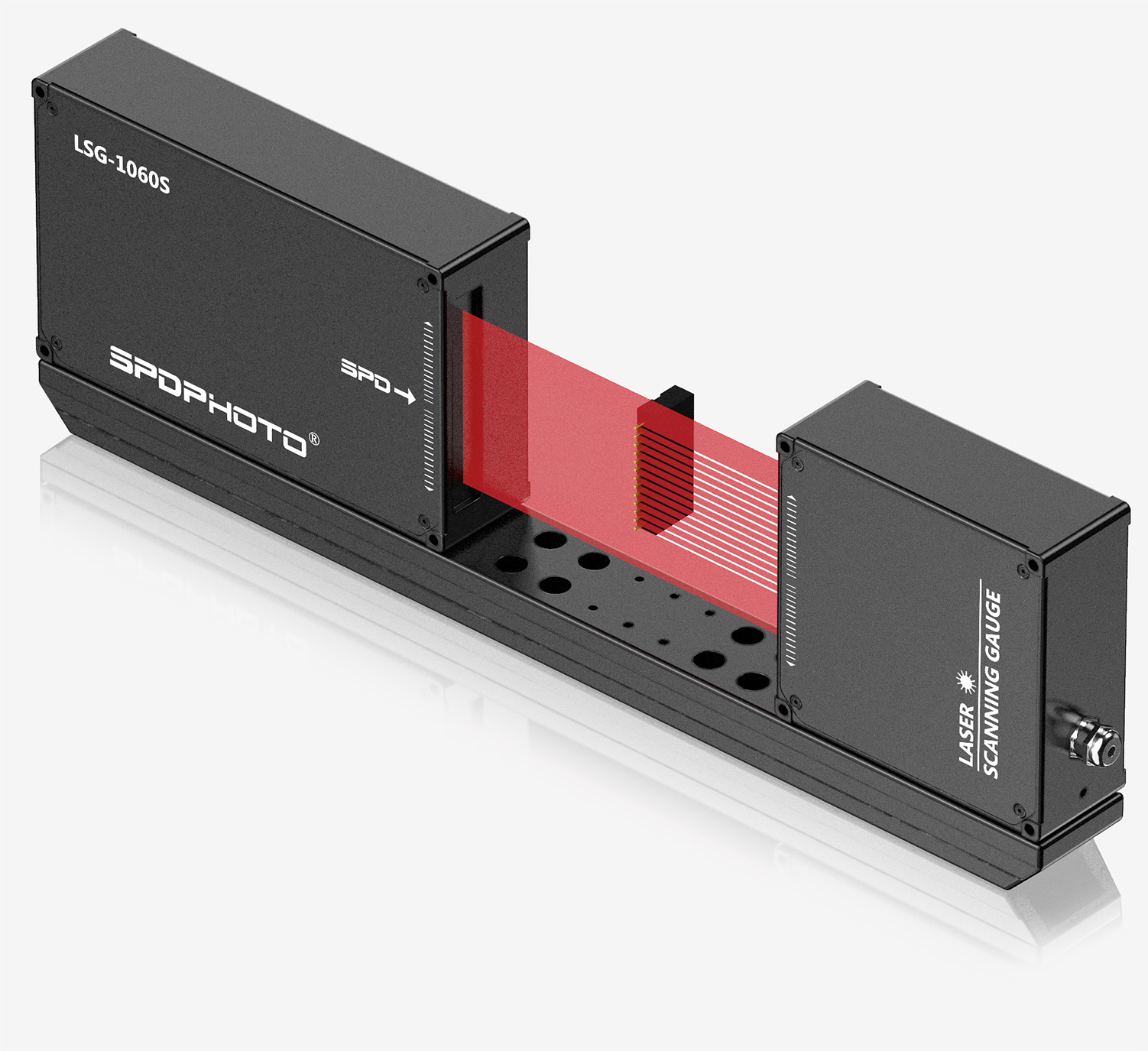

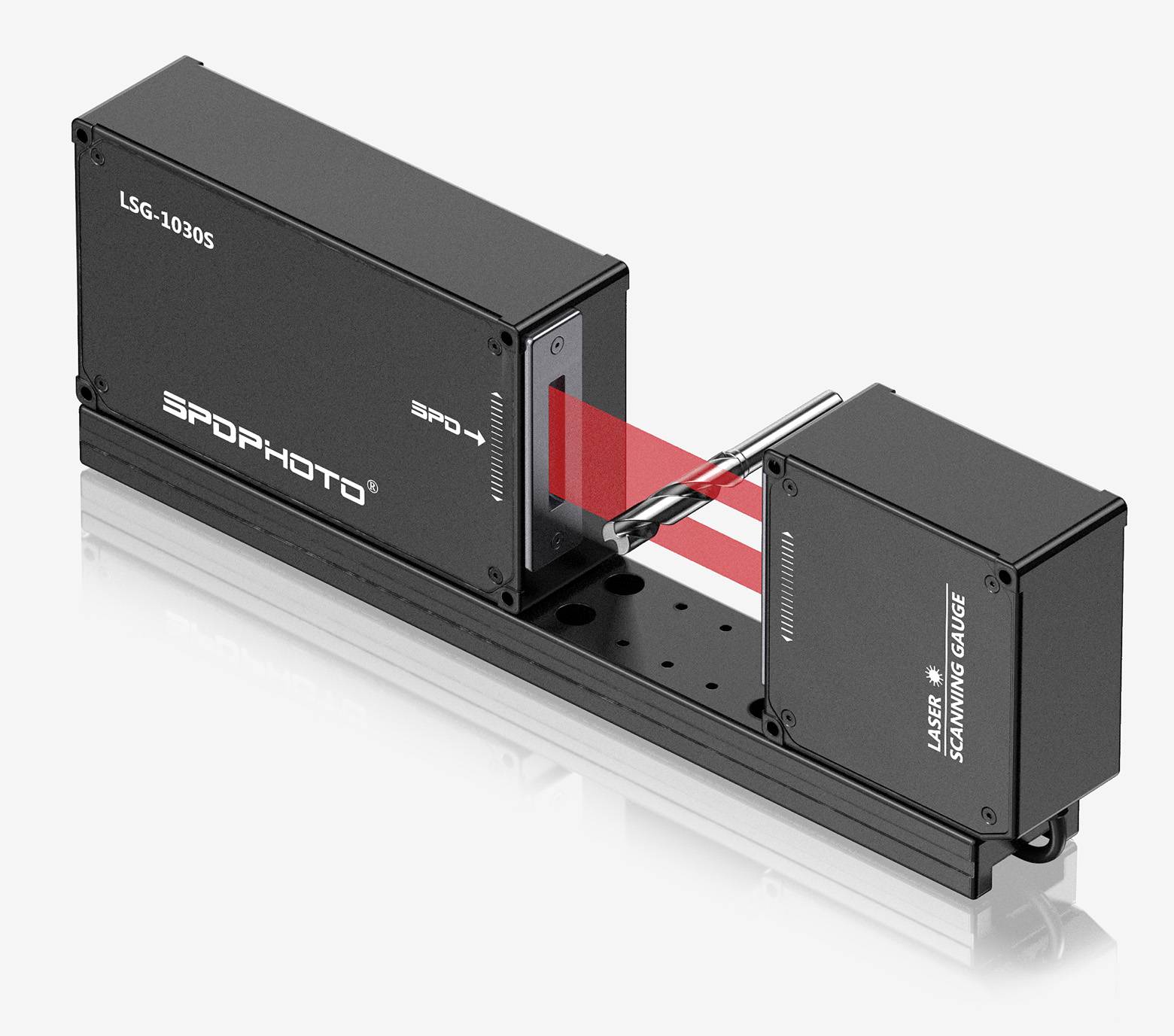

The LSG series multifunctional diameter gauge uses a laser scanning system for more precise sampling of the outer profile of the target. The modular design meets various application scenarios and requirements, combining laser scanning technology with high-performance DSP for high-speed data processing, ensuring fast and accurate measurements while maintaining stable data processing.
Main applications:

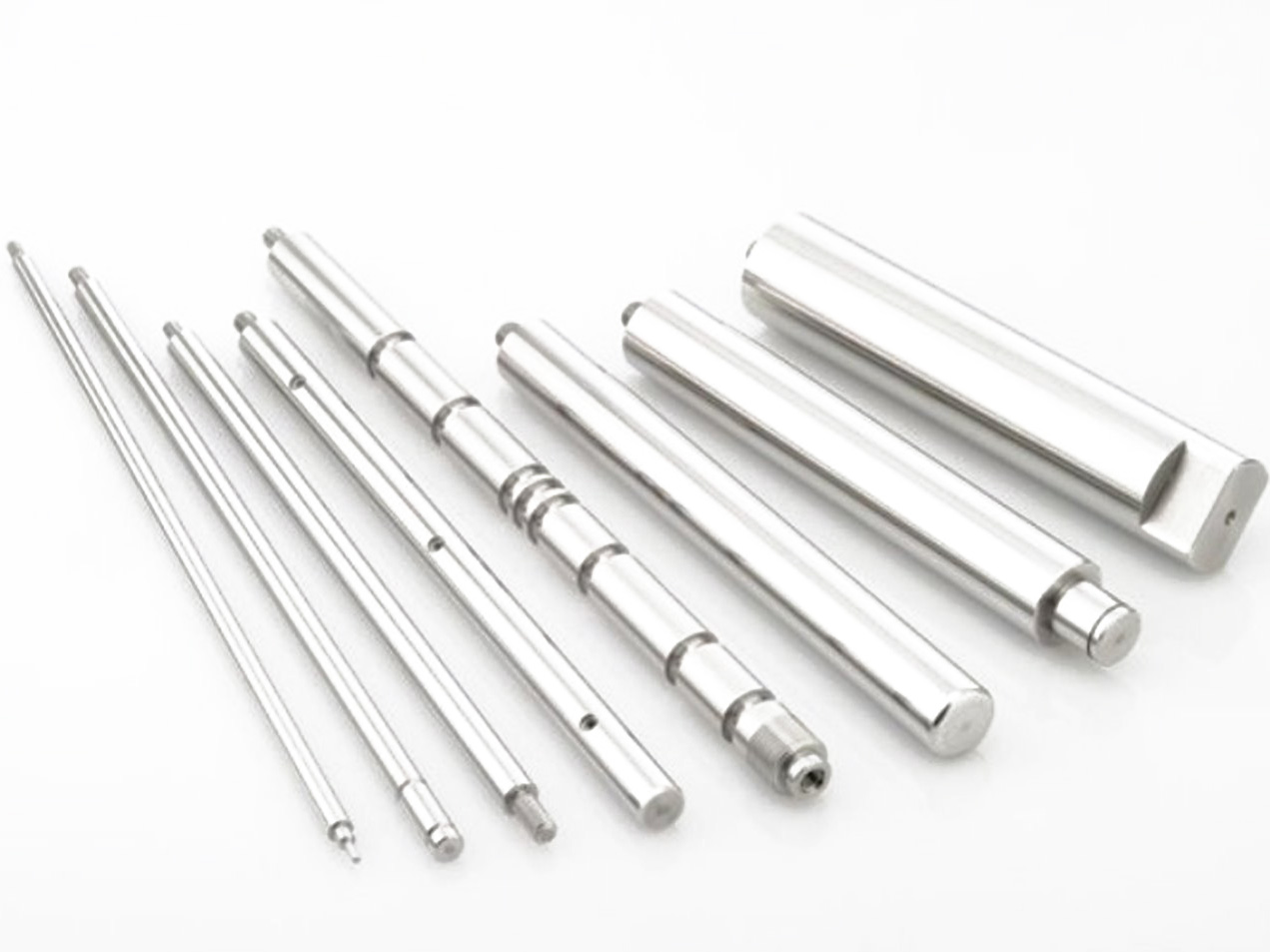

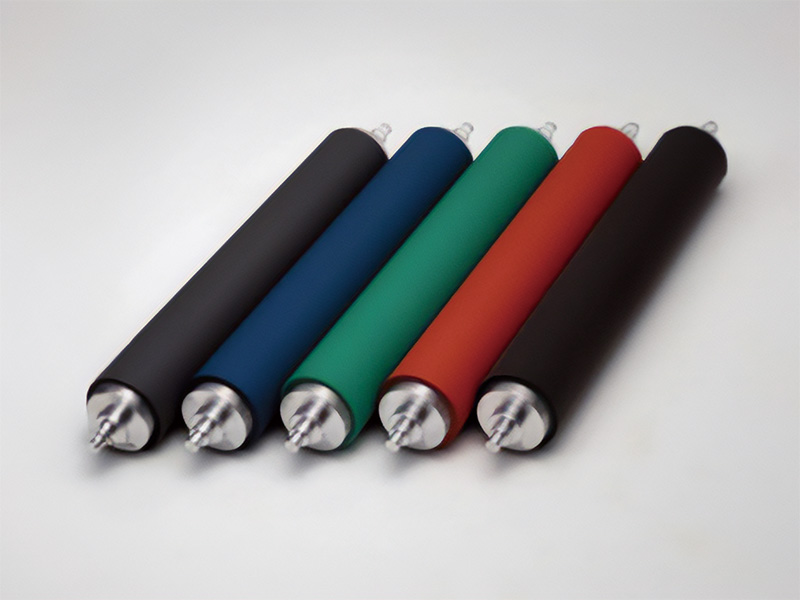

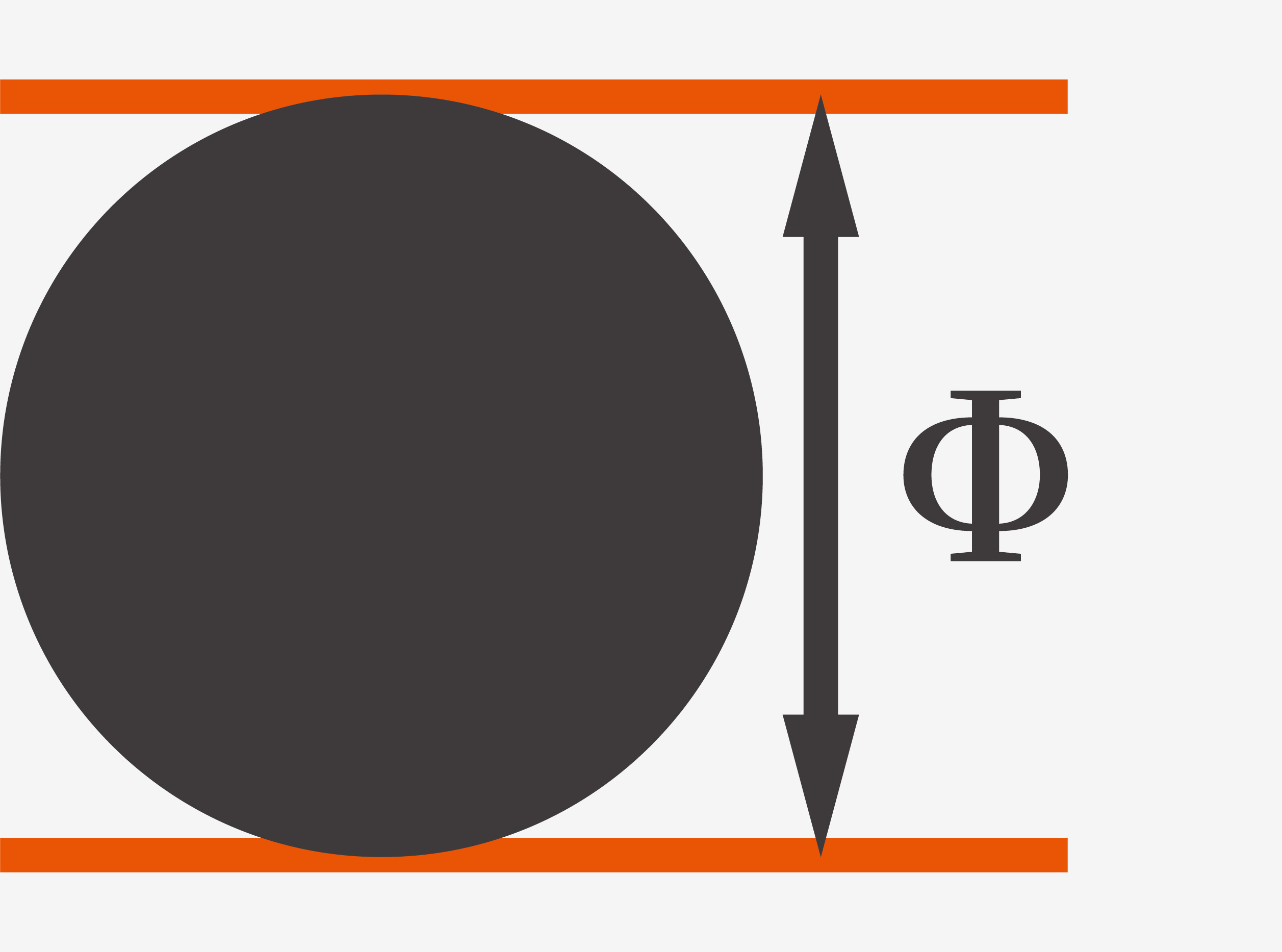

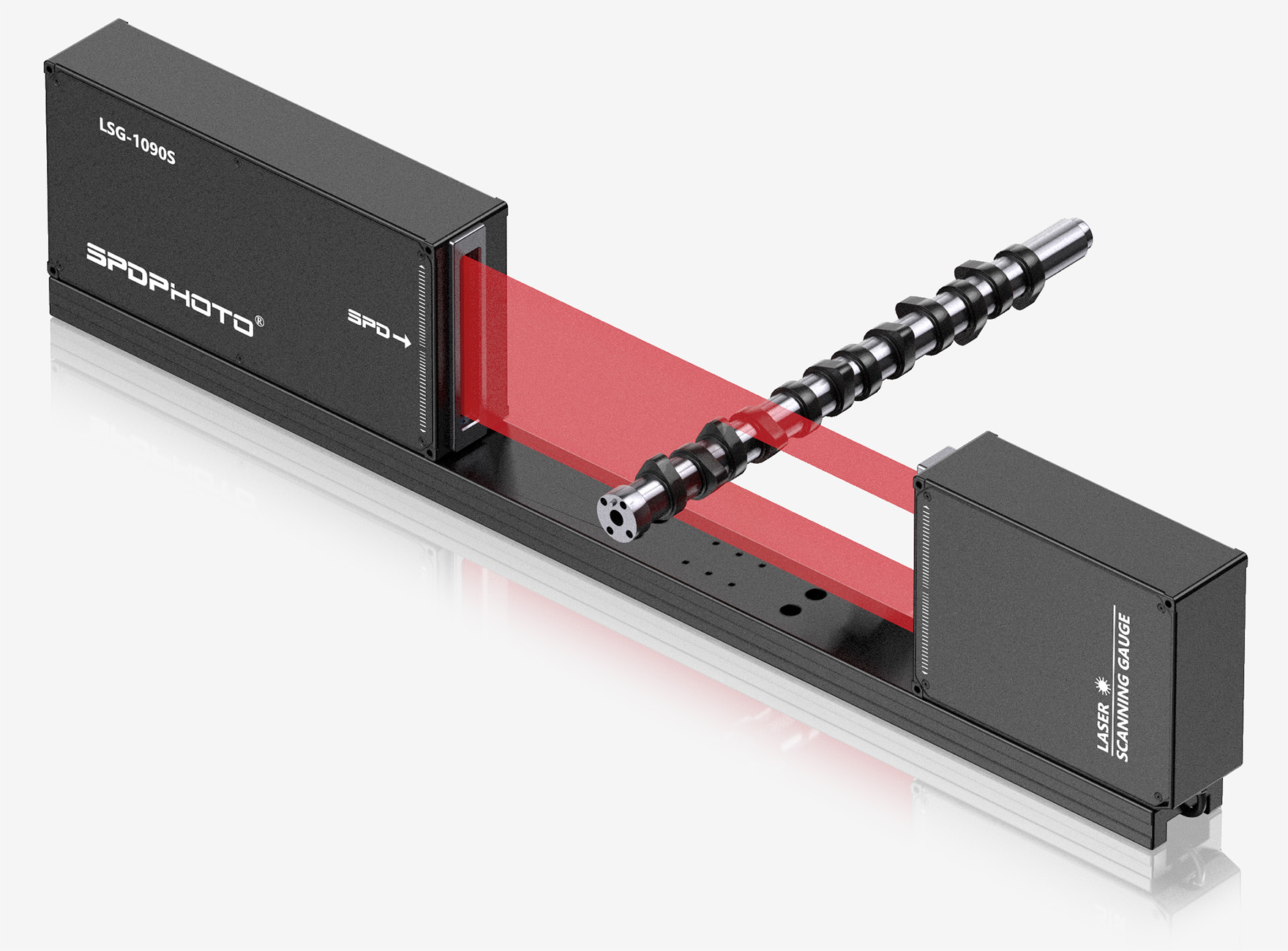

Detection of outer diameter, runout, and ovality of shafts and rollers

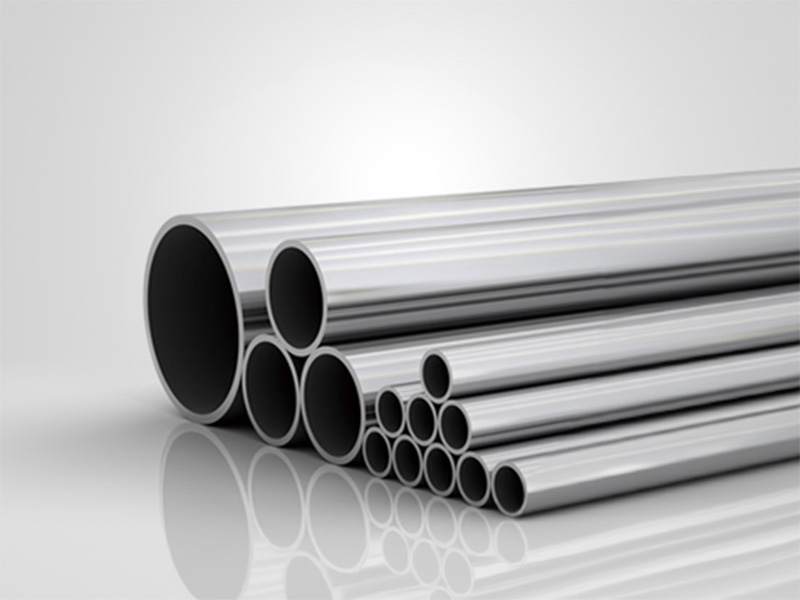

Outer diameter measurement of medical wire, tubing, rods, and other materials

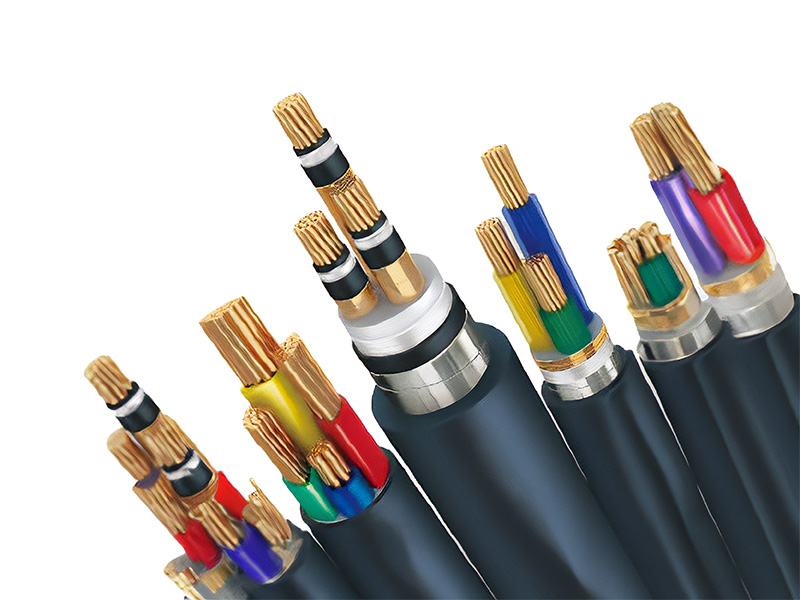

Outer diameter measurement of wires and cables
Measurement of workpiece outer diameters and runout.
| High collimation light source |
| Edge detection optimization |

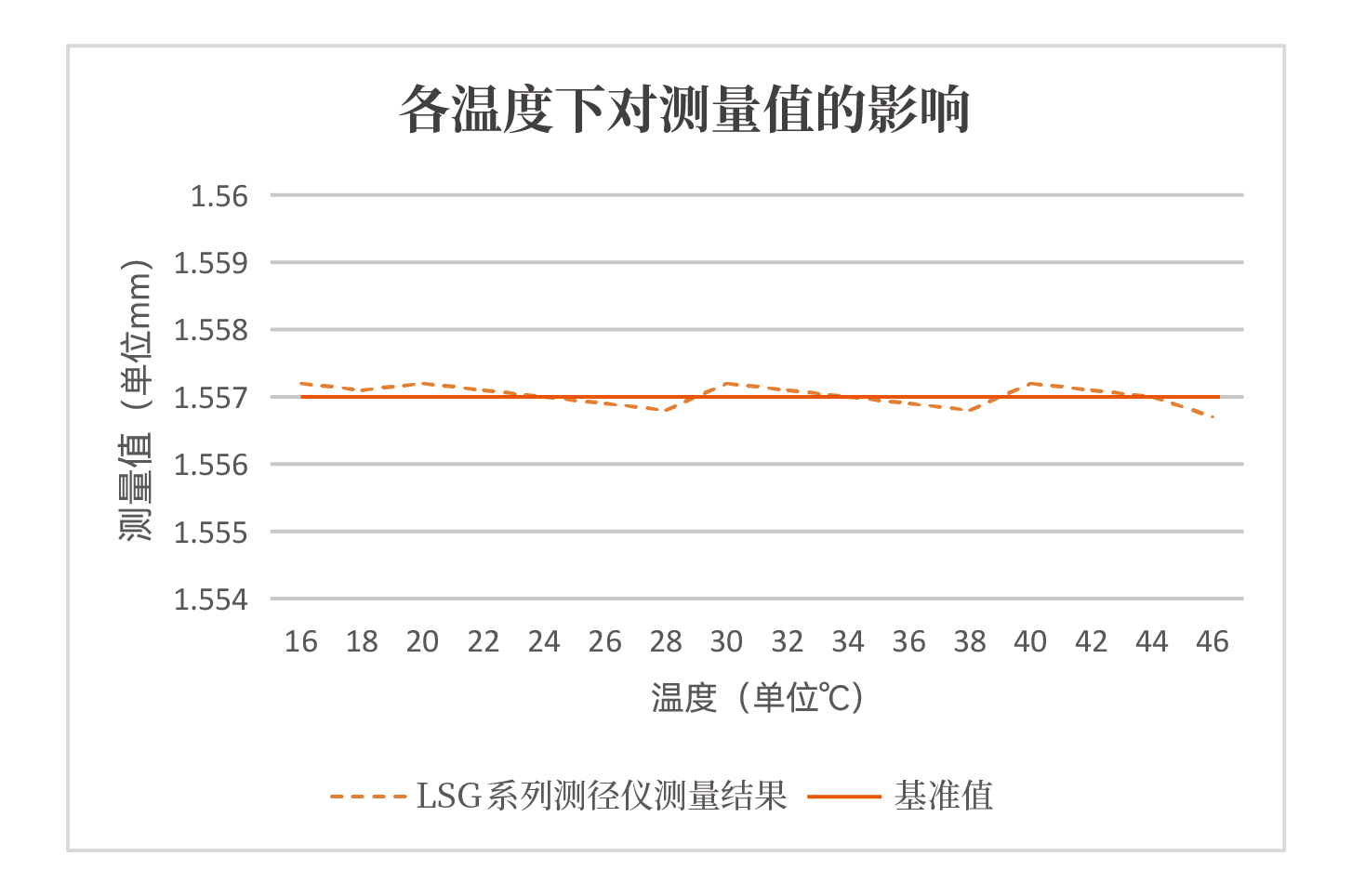

| Temperature-insensitive measurement |
|

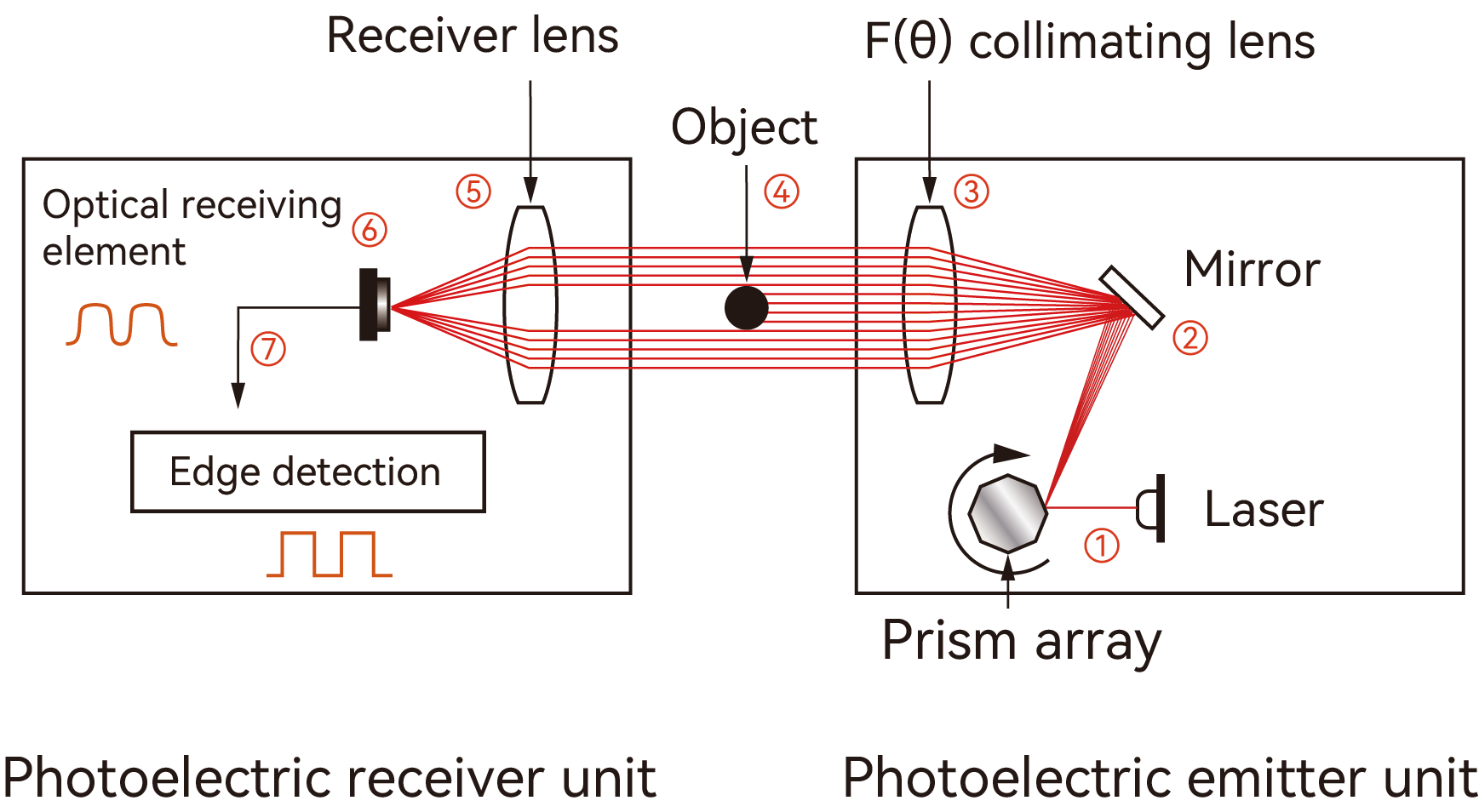

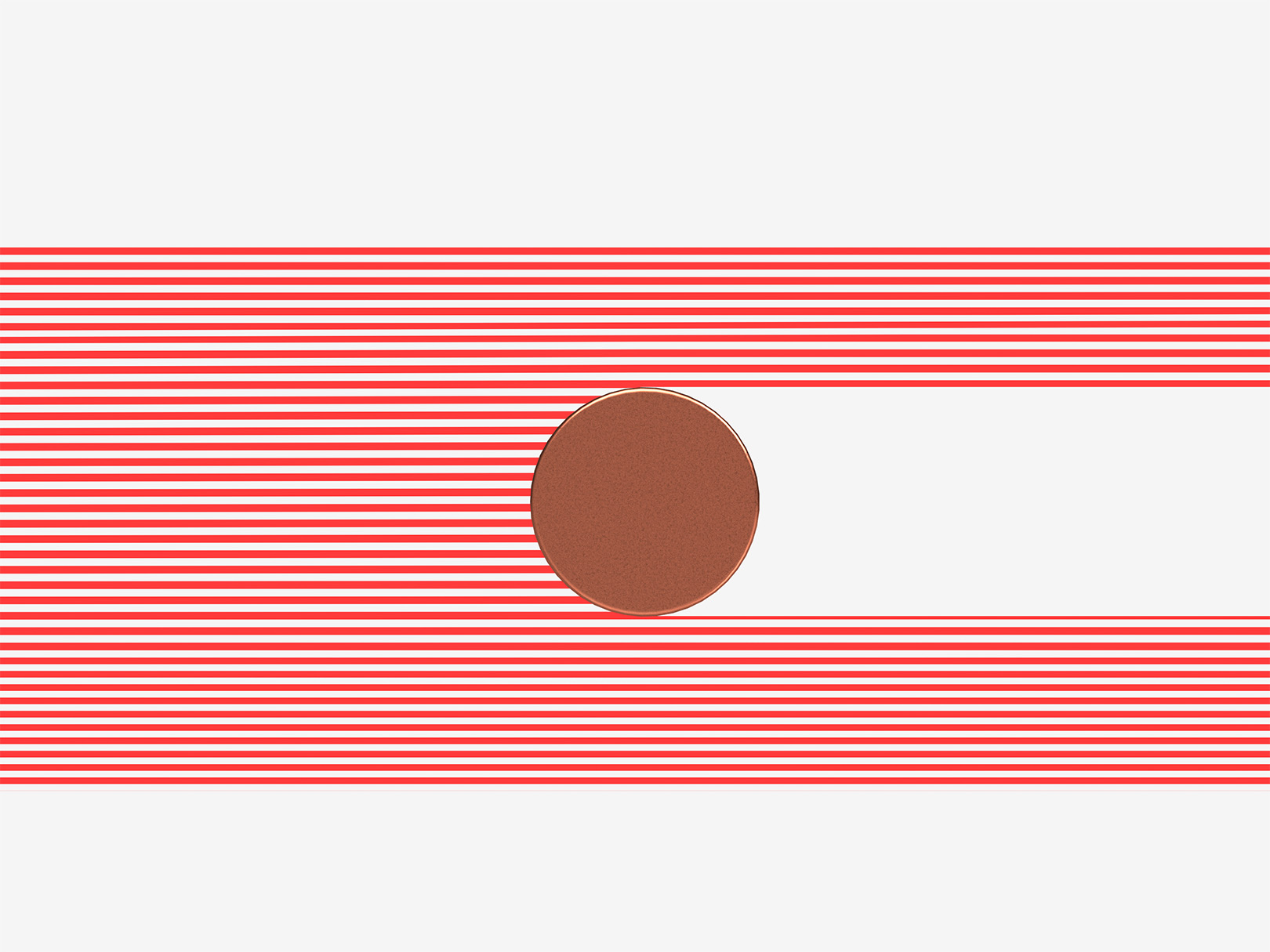

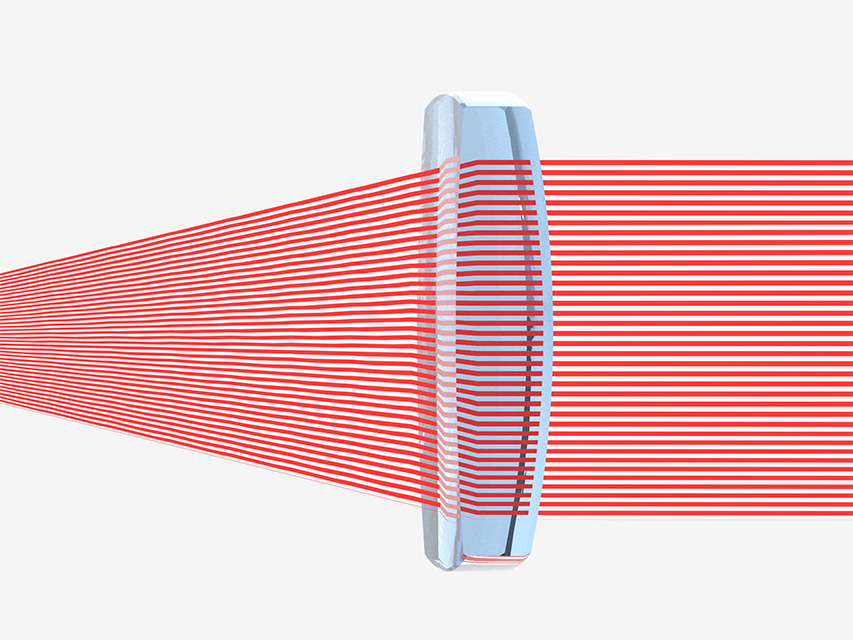

| The high-precision, parallel, collimated, and equidistant optical imaging system accurately identifies the target edges of the measured object, ensuring linear measurement accuracy and precision at different positions within the testing area. |
| Ensures precise identification of the target object's edges. |
| The specially designed optical imaging sampling module ensures long-term accuracy and reliability of measurement data.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| DSP digital signal processing | | Online communication | | Long-term stable operation |
|
| High-speed DSP technology processes large volumes of data in a short time, ensuring data integrity and accuracy. |
| Standard communication protocol, secure, stable, and reliable.
|
| Customized optical transmission components and industrial-grade design ensure long-term operational stability. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

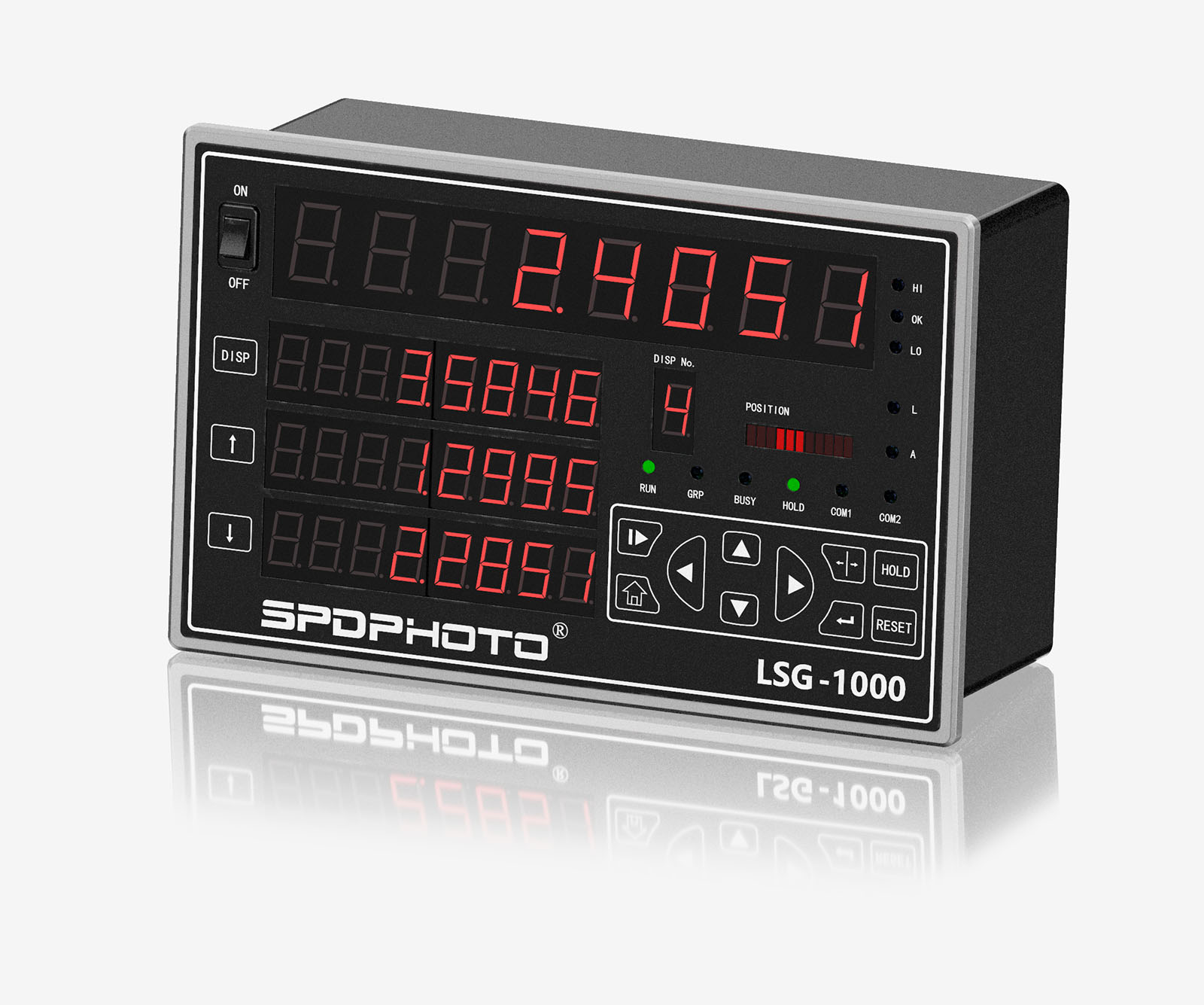

LSG-1000 Remote Display
| The LSG-1000 remote display is an auxiliary tool specifically designed to complement the LSG series multifunctional diameter gauges. It provides an intuitive, user-friendly interface with rich functionality. The display not only shows real-time measurement results but also supports advanced feature settings and alarm outputs, ensuring efficient operation and monitoring in various complex environments.
|
|
|
|
| Main Functions: Real-time Data Display: Displays real-time measurement data collected by the gauge on a digital tube, ensuring users can instantly monitor the changes in the workpiece's size.
Tolerance Parameter Setting: Users can easily set required tolerance parameters via the remote display, ensuring that measurement results meet strict quality standards.
Product Features: Fast processing and display of measurement data, with real-time feedback on workpiece dimensions.
High-definition digital tube display ensures clear readings, even in bright environments.
Lightweight yet durable housing designed for long-term use in industrial settings.
Simple, intuitive interface for ease of operation.
Supports remote installation and operation, especially suited for high-temperature or harsh environments. |
| Multiple Measurement Modes: Diameter Mode: For measuring the diameter of cylindrical parts or cables.
Group Mode: Simultaneous measurement of multiple data points, ideal for multi-wire and gap measurements.
Comparison Mode: Compares and identifies differences between measurements.

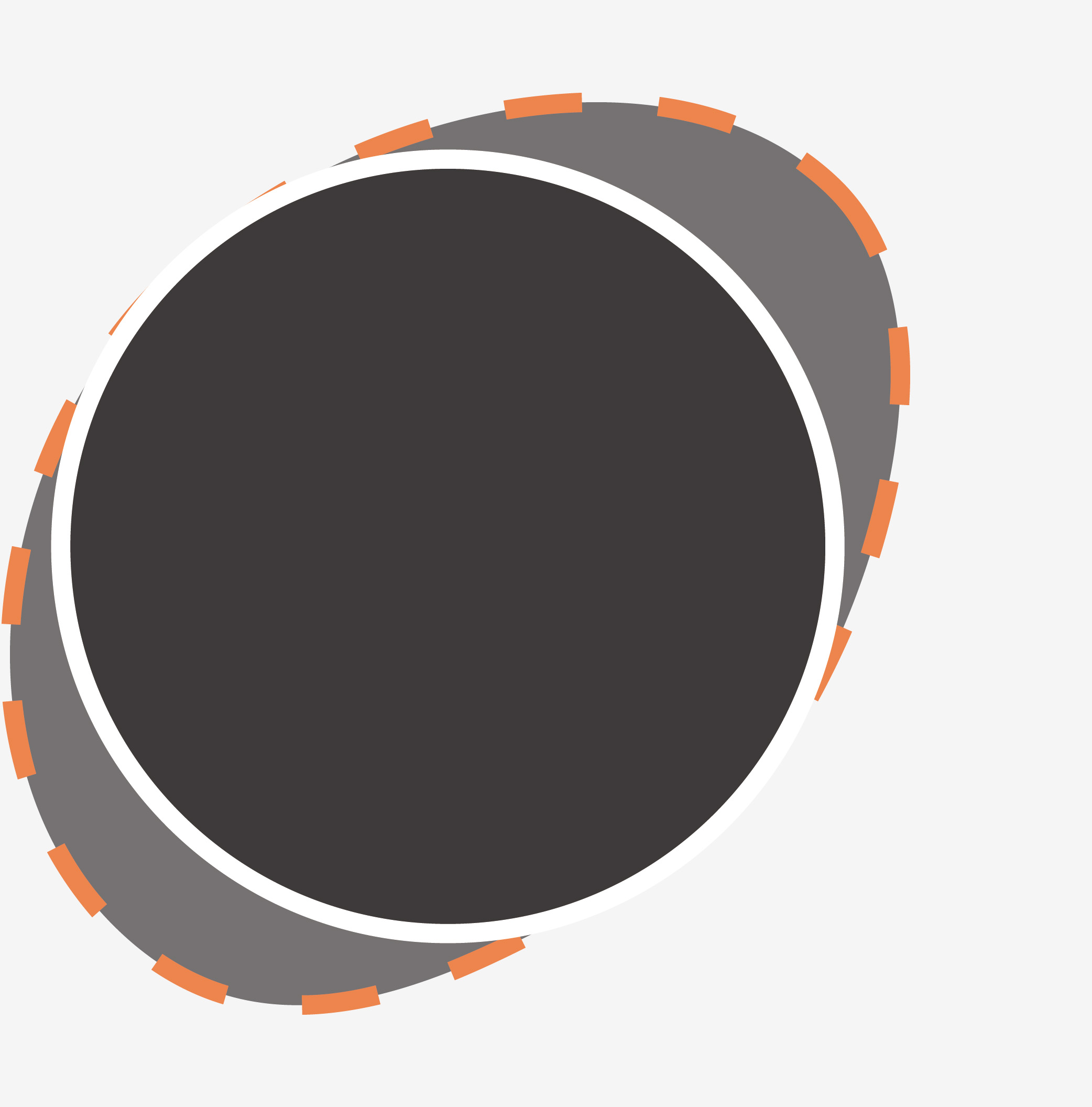

Roundness Mode: Evaluates the roundness of workpieces to ensure geometric conformity.
Runout Mode: Monitors runout during workpiece rotation to ensure dynamic precision.
Workpiece Mode: Optimized measurement for specific workpiece types, enhancing accuracy.

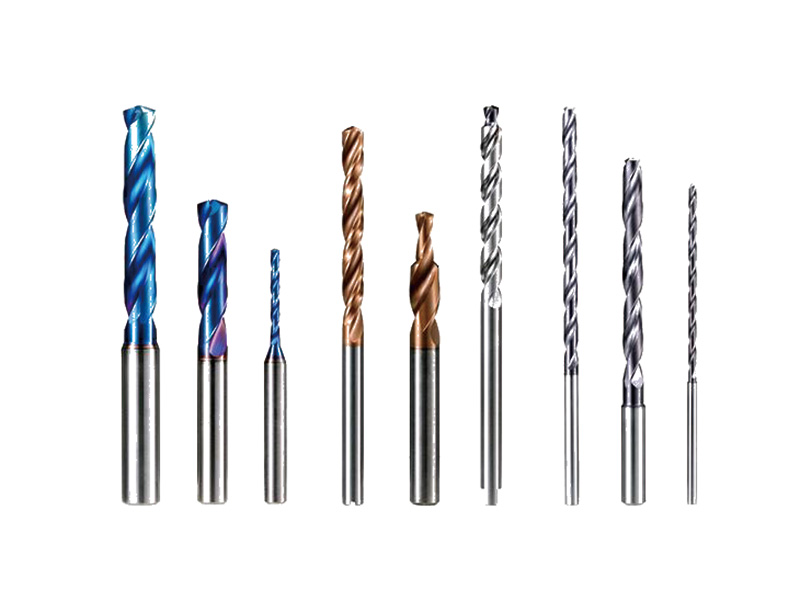

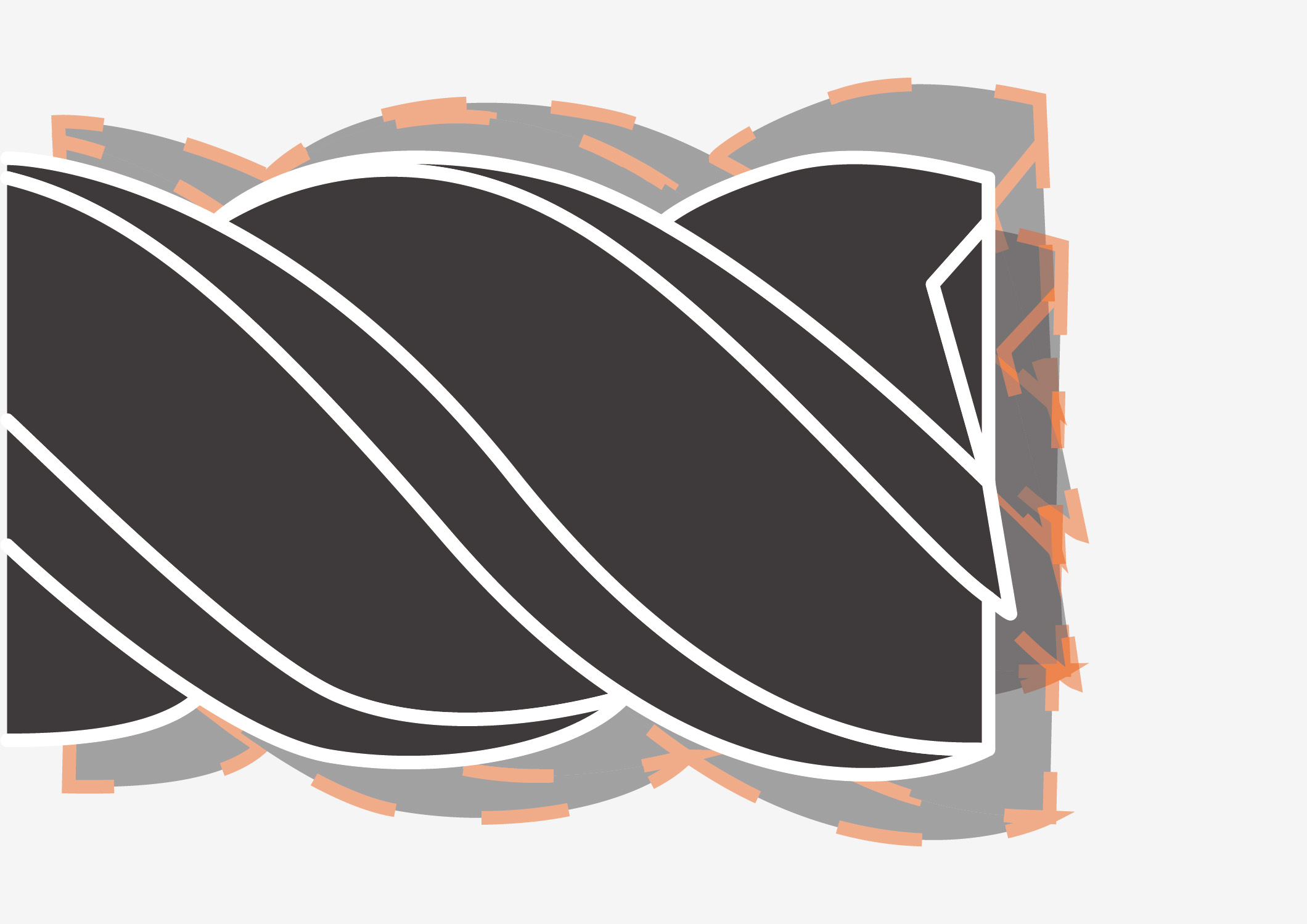

Cutter Mode: For measuring tools like milling cutters, ensuring accurate dimensions and shape.
Center Mode: Identifies the center of the workpiece to ensure alignment accuracy. |
|

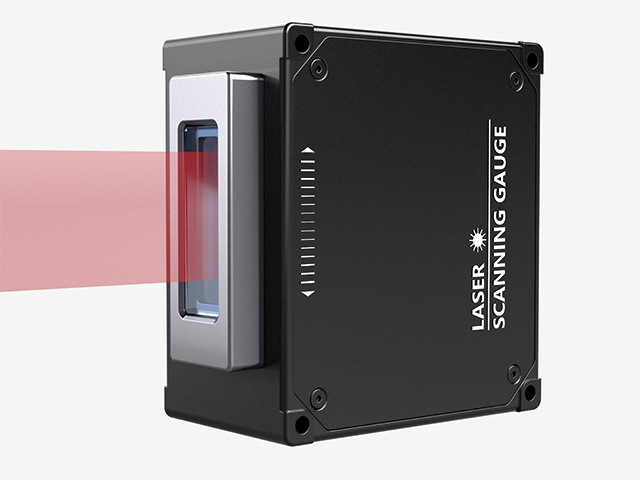

Modular Design, Compact and sleek body, suitable for a wider range of applications.
Modular Design. Suitable for more scenarios with high precision.
Wide Range & Modular Design
Large Measurement Range & Modular Design
