SPDPHOTO Tech
Home > Products > Non-contact Dimensional Measurement > CCD Imaging Diameter Gauge > CCD Telecentric Imaging Fine Wire Diameter Gauge
CCD Telecentric Imaging Fine Wire Diameter Gauge

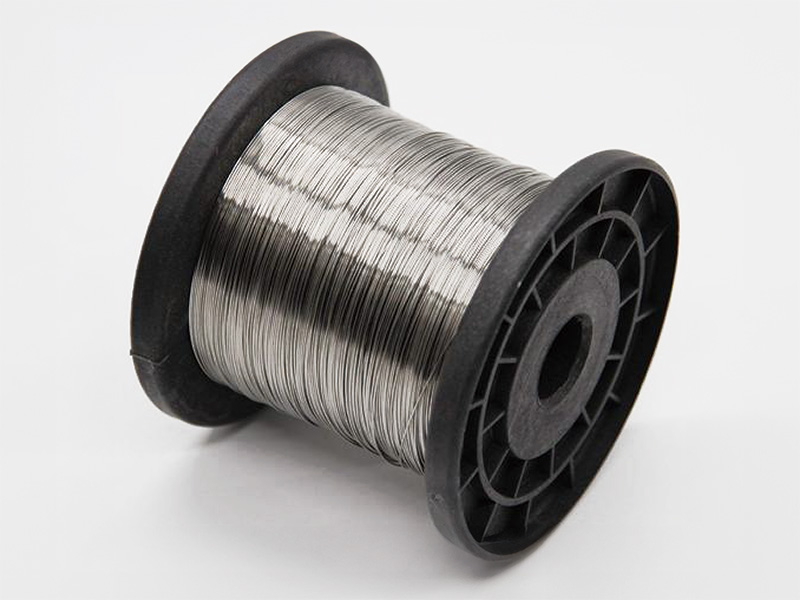

Suitable for ultra-fine wire, metal micro-drawn wire, optical fiber, nylon thread, diamond cutting wire, and other fine wires.
Video

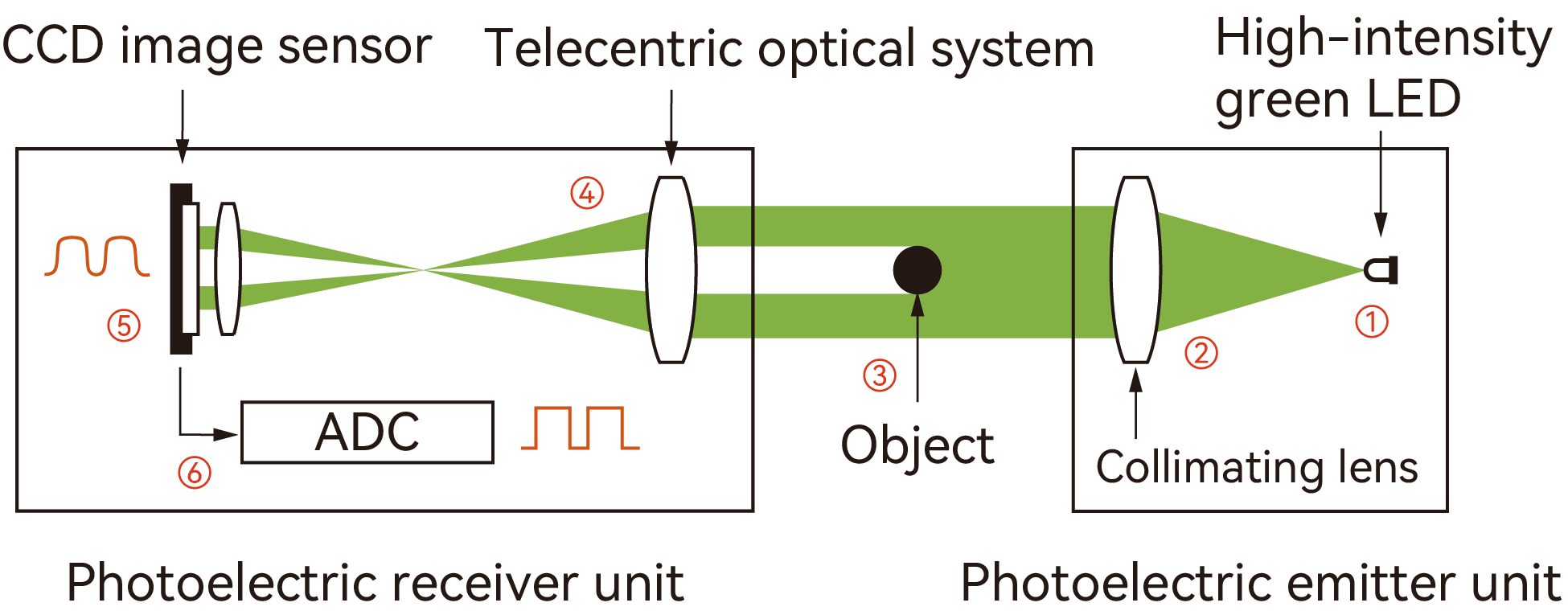

Principle Principle




Transmitter Side: The high-intensity green LED emits high-power green light, which is collimated and parallelized by the collimating lens. When the green light hits the measured object, it casts a shadow.
Receiver Side: The telecentric optical system projects the shadow of the measured object onto the CCD image sensor. In the high-speed linear CCD, a precise image of the measured object is formed. The image is then processed and calculated by the digital edge detection processor to obtain accurate measurement dimensions.

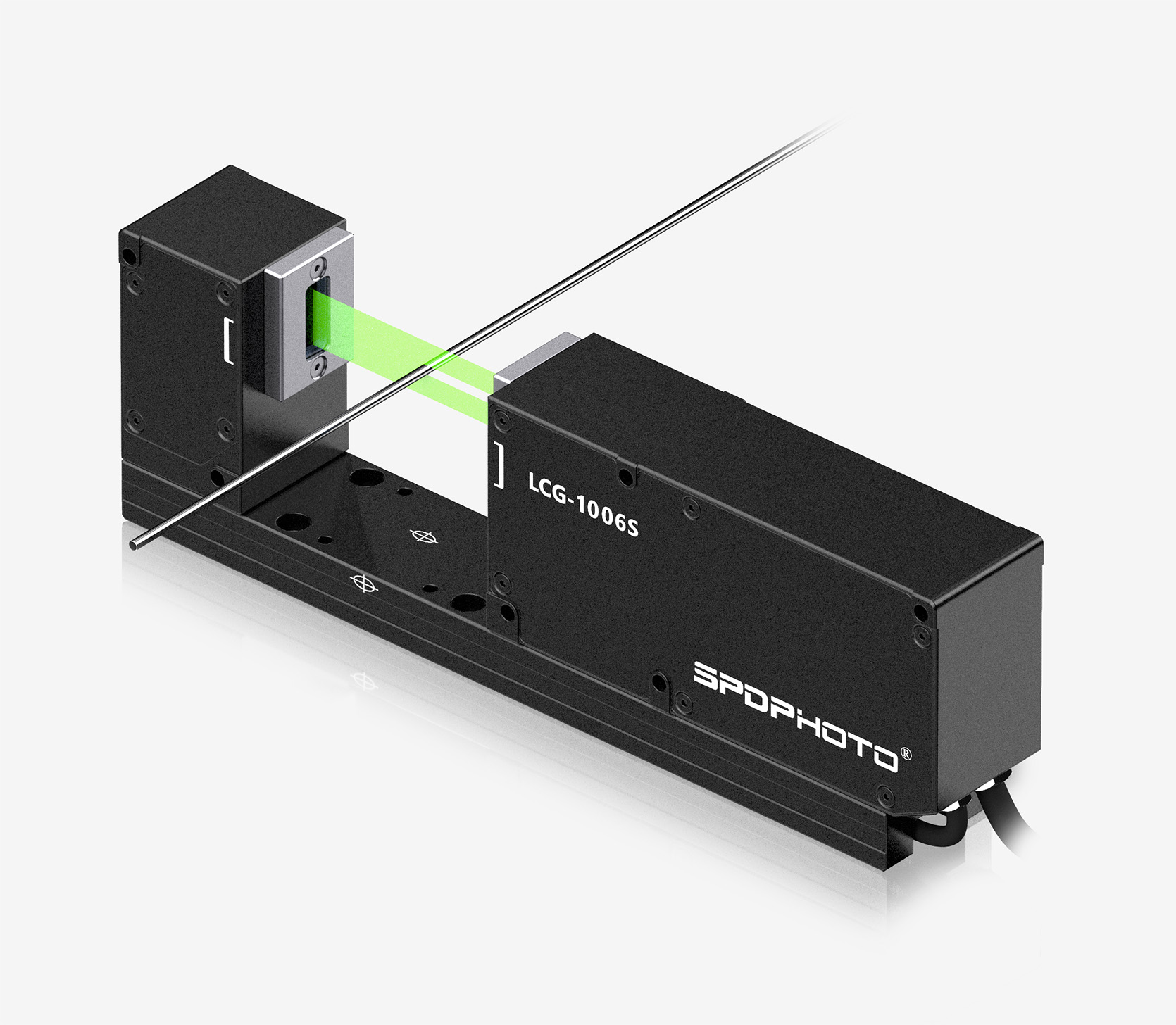

LCG-1006S
CCD imaging for precise outer diameter measurement. Compact, suitable for narrow environments.





Applicable diameter range

0.04mm - 6mm

Accuracy ±0.5μm
Repeatability±0.1μm
Measurement Modes
Outer diameter measurement
Outer diameter measurement
Edge position detection
Edge position detection
Technical Features
Uses a CCD telecentric imaging optical system.

LCG series adopts a CCD telecentric optical imaging system for faster sampling of the target object's outer profile, with a sampling frequency of up to 5kHz. High-speed sampling and a powerful DSP processor ensure stable data processing. This high sampling rate and response speed guarantee measurement accuracy and stability, providing stable results in a very short time. It also analyzes outer diameter variations and detects surface particle defects.

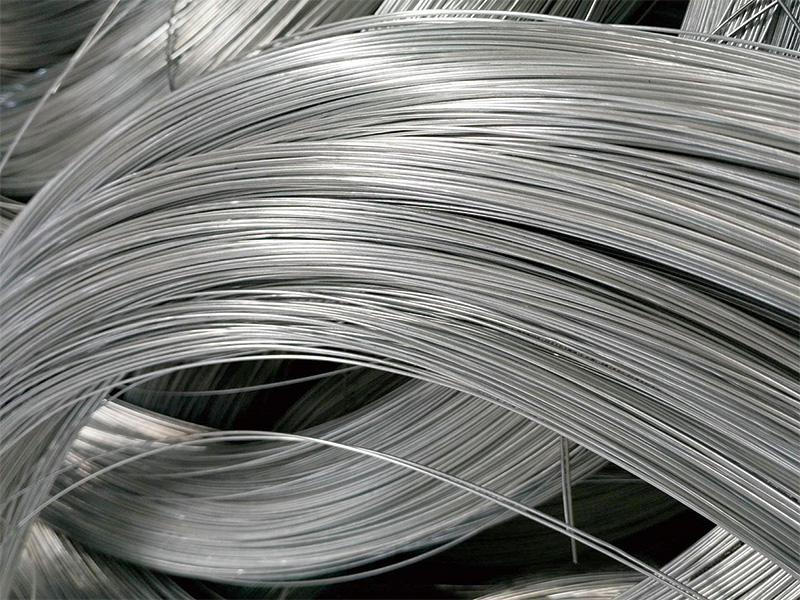

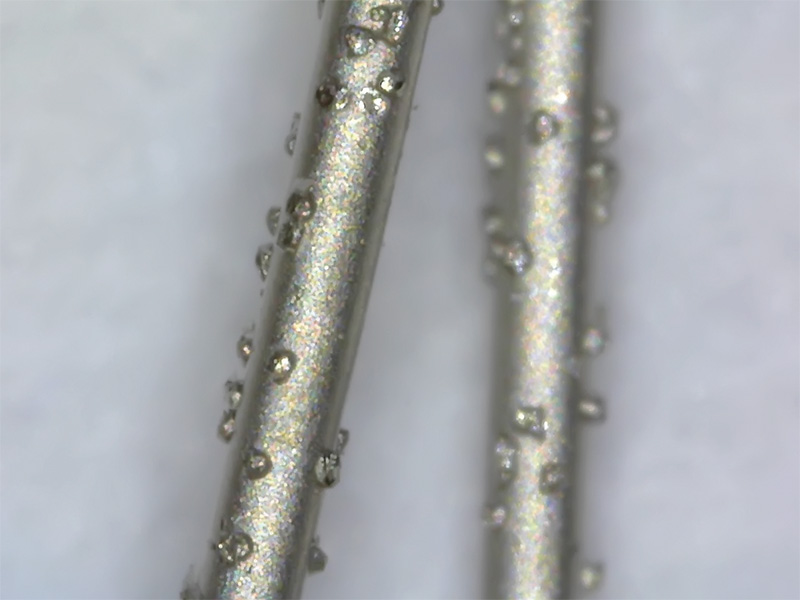

Main applications: ultra-fine wires, metal drawn wires, diamond wires, tungsten wires, optical fibers, nylon wires, enameled wires, etc.
































High-speed CCD telecentric imaging optical system









  1. High-intensity green LED emits high-power green light.
  2. The collimator lens makes the light parallel and collimated for emission.
  3. The emitted light strikes the object, causing a shadow.
  4. The telecentric optical system projects the shadow onto the CCD image sensor.
  5. The accurate shadow image of the object is formed on the high-speed linear CCD.
  6. The digital edge detection processor processes and calculates the measurements.


Detailed Parameters
Models LCG-1006S
Number of axes 1axis
Minimum Resolution 0.0001mm
Measuring range 0.04-6mm
Accuracy ±0.5μm±0.01%*D
Repeatability ±0.1μm±0.005%*D
sampling frequency 2400Hz
Alarm output 24V，1A(contact load)
Communication Dual-channel RS-485/MODBUS protocol, TCP/IP, WIFI
PI control Optional
Power supply DC 24V， 2A
Display method Remote digital display
transparent materials Supports
Ambient Temperature 0 to +50℃(32 to 122°F)
Ambient Humidity 35% to 85% RH, No condensation
Dimensions 232x74x36(mm)
