Handheld Laser Diameter Gauge
Suitable for measuring the outer diameter of enameled wires, nylon wires, stainless steel wires, tinned wires, optical fibers, and diamond wires.
Video
Principle Principle




The laser beam is emitted from a semiconductor laser, reflected by a multi-faceted mirror and a plane mirror, and then passes through a collimating F(θ) lens to scan the measured object in parallel alignment. The shadow of the beam formed by the measured object is focused through the receiver lens and converted into an electronic signal. The size of the measured object is calculated based on the time taken for the beam to be blocked and form a shadow.


LSP-1005
Handheld Micrometer for Ultra-Fine Wires.





Applicable diameter range

0.015mm - 2mm

Accuracy  ±0.3μm
Repeatability±0.1μm

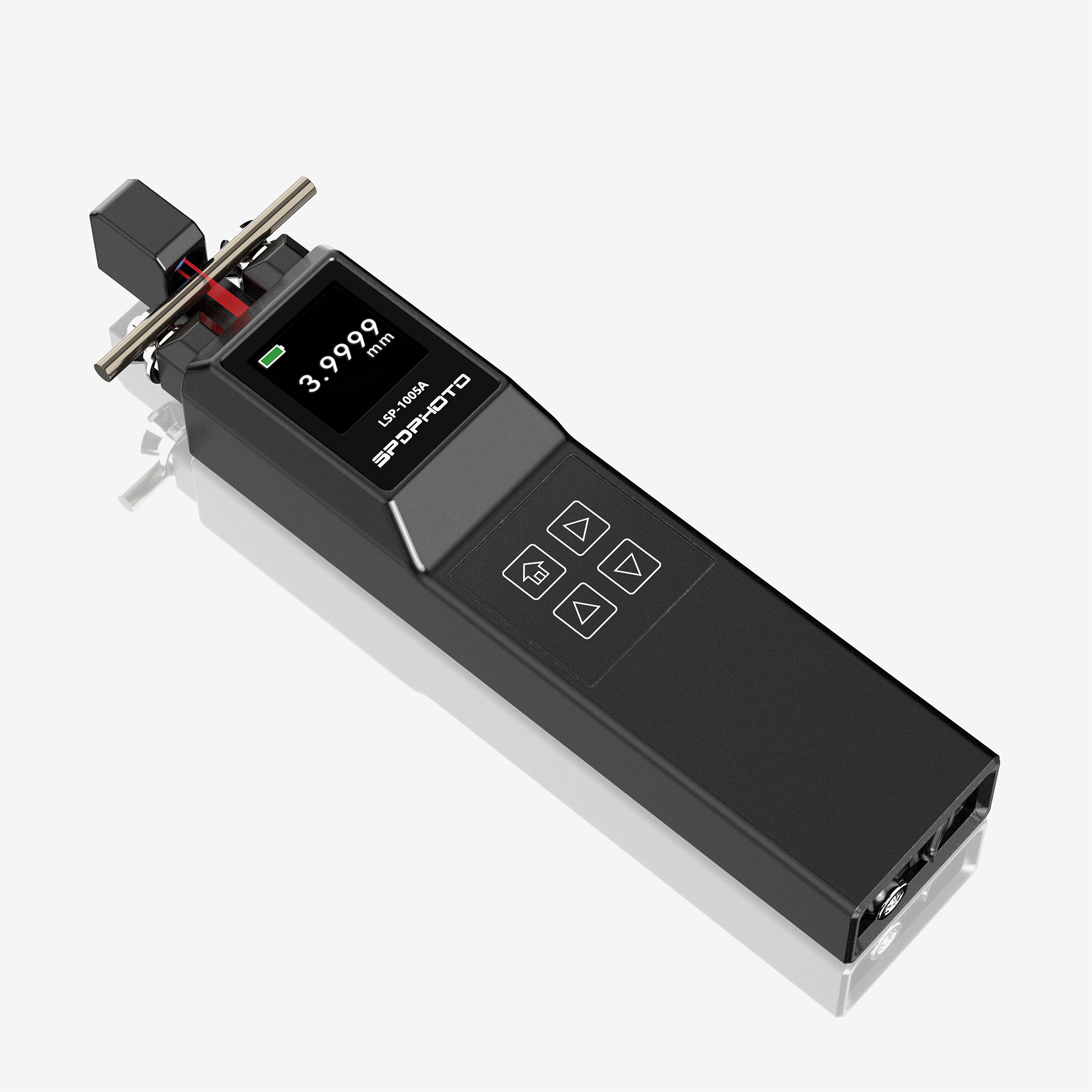

LSP-1005A
Handheld Micrometer for Fine Wires.The measurement range extends up to 4.5mm.





Applicable diameter range

0.03mm - 4.5mm

Accuracy±0.3μm
Repeatability±0.1μm
Measurement Modes
Outer diameter measurement
Outer diameter measurement
Application Scenario
Understanding the product’s application mode helps in selecting the most suitable product, improving work efficiency and performance.
  • Online Quick Sampling
    Flexible measurement without space limitations, enabling personnel to perform inspections anytime. The durable casing ensures long-lasting performance and extended battery life.

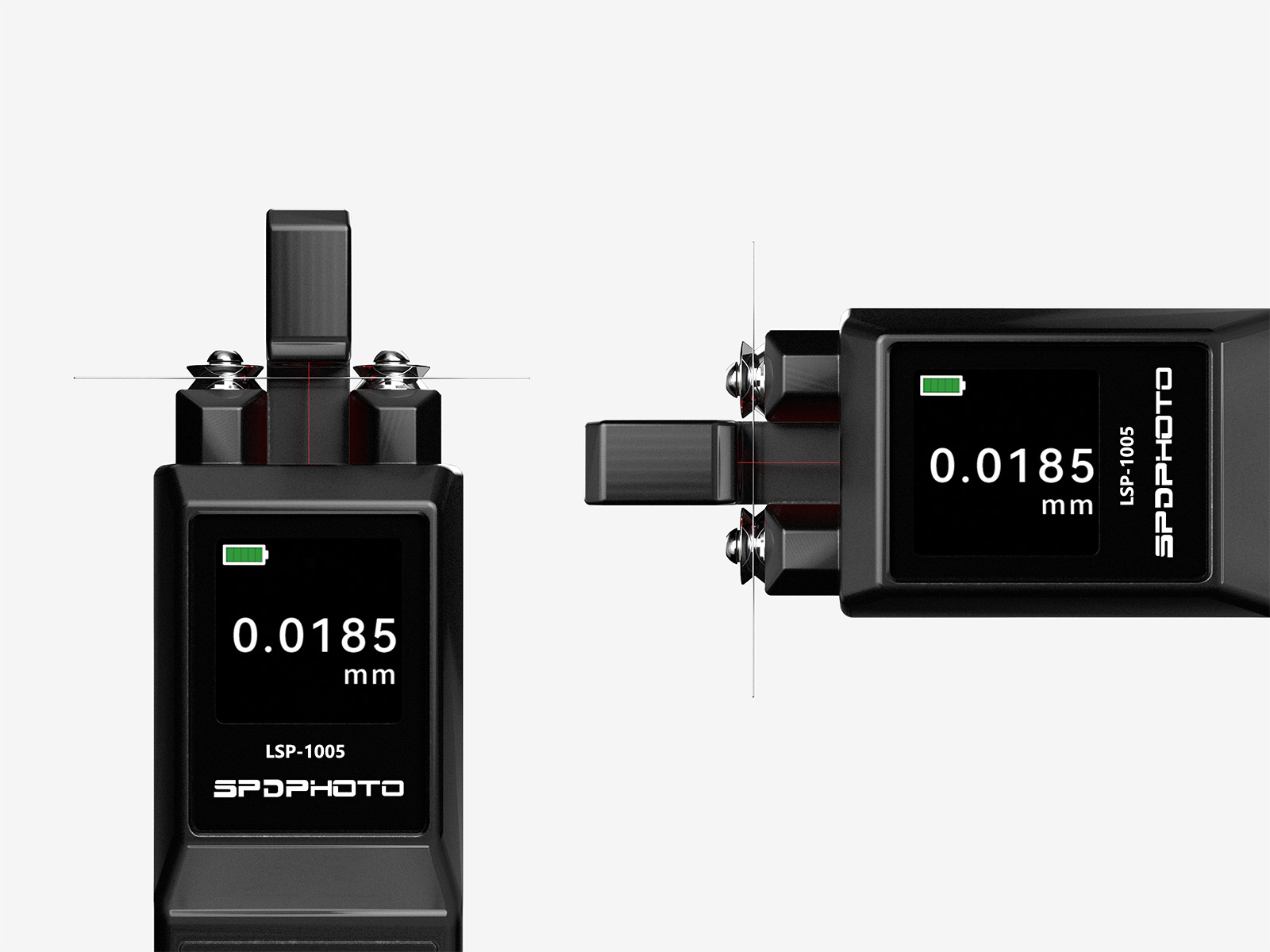

  • Rotatable Display
    The device has a rotatable screen for both horizontal and vertical grips, ensuring quick and accurate data reading on various production lines.
Technical Features
The LSP-1005 achieves steadily improved measurement accuracy through continuous design iteration.

LSP Portable Series: Utilizes laser scanning for non-contact measurement, ensuring no surface damage. Its lightweight, compact design makes it easy to carry. The high-definition LCD screen offers wide viewing angles and supports both horizontal and vertical display modes, enabling easy data observation from various angles. The large-capacity lithium battery supports continuous operation for 8-9 hours, making it ideal for quick measurements on production sites.

Applications: Micro fine wires, metal drawn wires, diamond wires, tungsten wires, optical fibers, nylon wires, enamelled wires, and more.



























High collimation light source


Edge detection optimization


Optimized Internal Design




The high-precision, parallel, collimated, and equidistant optical imaging system accurately identifies the target edges of the measured object, ensuring linear measurement accuracy and precision at different positions within the testing area.



Ensures precise identification of the target object's edges.



30% lighter and more compact than the previous generation, improving portability and user comfort.






























DSP digital signal processing



Dual-Mode LCD Display



Long-term stable operation




High-speed DSP technology processes large volumes of data in a short time, ensuring data integrity and accuracy.



Supports both horizontal and vertical modes for quick readings in any direction.



Customized optical transmission components and industrial-grade design ensure long-term operational stability.

















Detailed Parameters
Models LSP-1005 LSP-1005A
Minimum Resolution 0.0001mm 0.0001mm
Measuring range 0.015-2mm 0.03-4.5mm
Accuracy ±0.3μm±0.01%*D ±0.3μm±0.01%*D
Repeatability ±0.1μm±0.005%*D ±0.1μm±0.005%*D
sampling frequency 800Hz 800Hz
Power supply 7.4VBattery(2000mah) 7.4VBattery(2000mah)
transparent materials Supports Supports
Ambient Temperature 0 to +50℃(32 to 122°F) 0 to +50℃(32 to 122°F)
Ambient Humidity 35% to 85% RH, No condensation 35% to 85% RH, No condensation
Wavelength 650nm 650nm
Dimensions 225x48x39(mm) 225x48x39(mm)
