Fine Wire Laser Diffraction Diameter Gauge
Outer Diameter Measurement of Enameled Wires, Copper Wires, Tungsten Wires, and Other Fine Metal Drawn Wires
Video
Principle Principle

When a laser passes through a small aperture or encounters a tiny obstacle, it deviates from its straight path, creating a diffraction pattern. This pattern results in alternating light and dark bands on the CCD image sensor. By analyzing the spatial distribution of these bands, the size of the measured object can be calculated accurately.

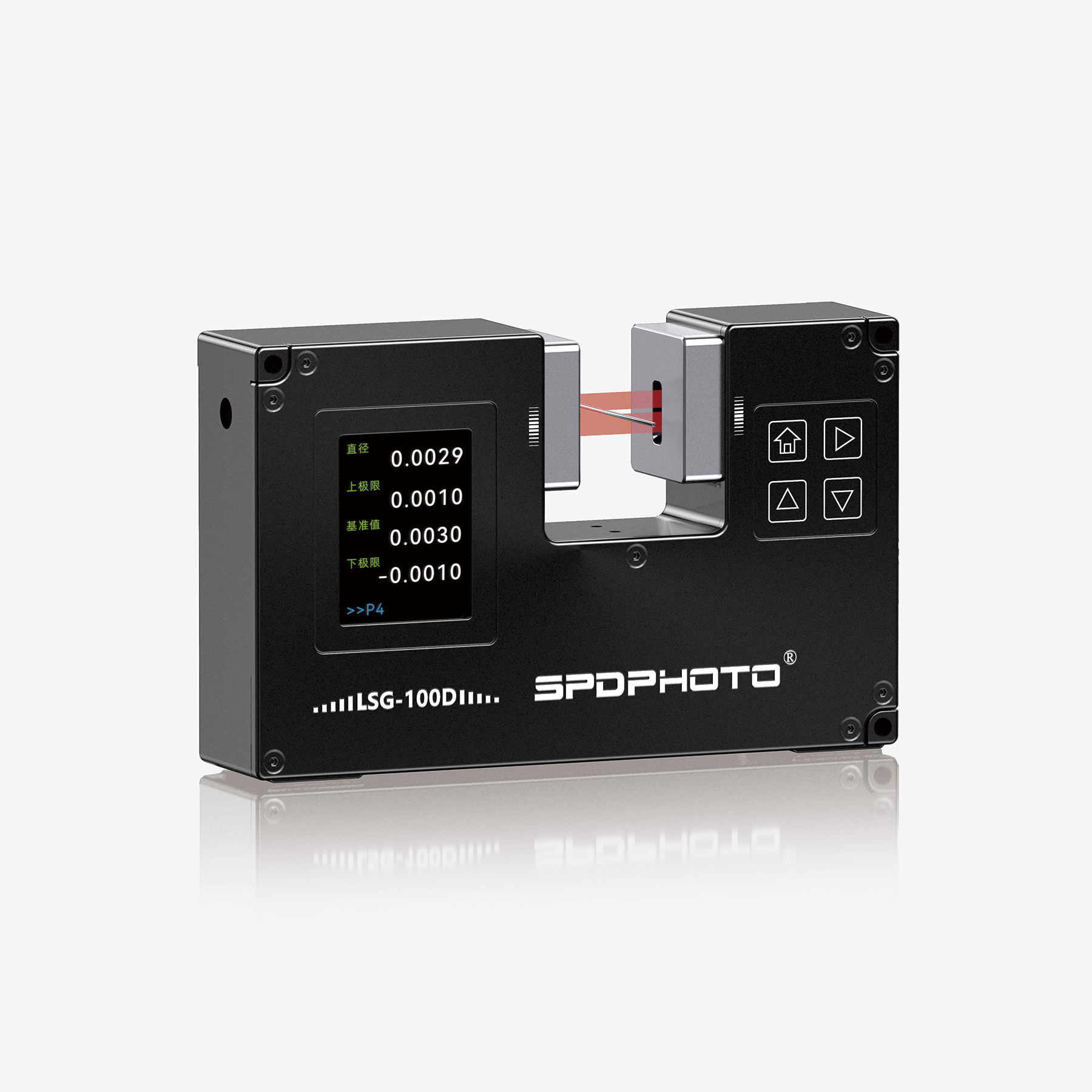

LSG-100D
Uses the Fraunhofer diffraction principle for precise outer diameter measurement of ultra-fine wires.
Compact and lightweight design, suitable for confined production environments.




Applicable diameter range

0.015mm - 0.8mm

Accuracy ±0.3μm
Repeatability±0.1μm
Measurement Modes
Outer diameter measurement
Outer diameter measurement
Technical Features
New optical aspheric processing technology with a unique optical imaging system.
No need for correction, providing more stable and reliable measurement results.

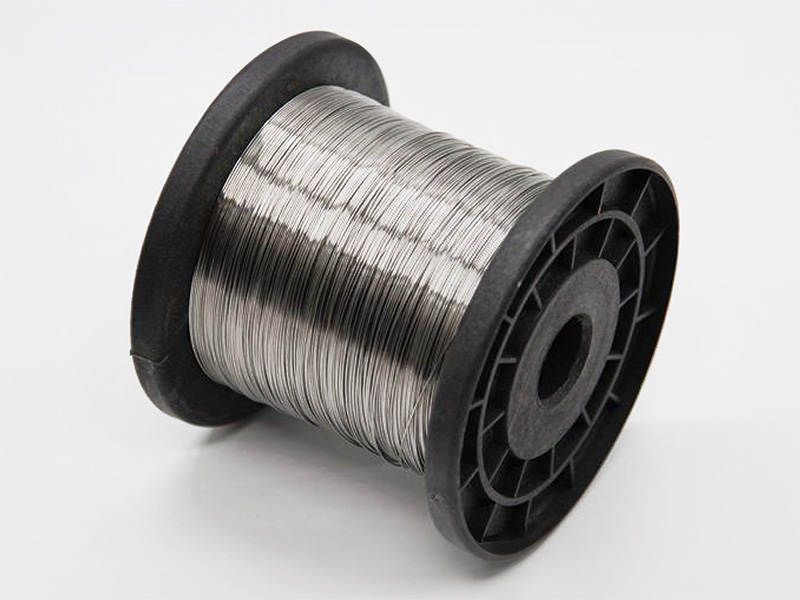

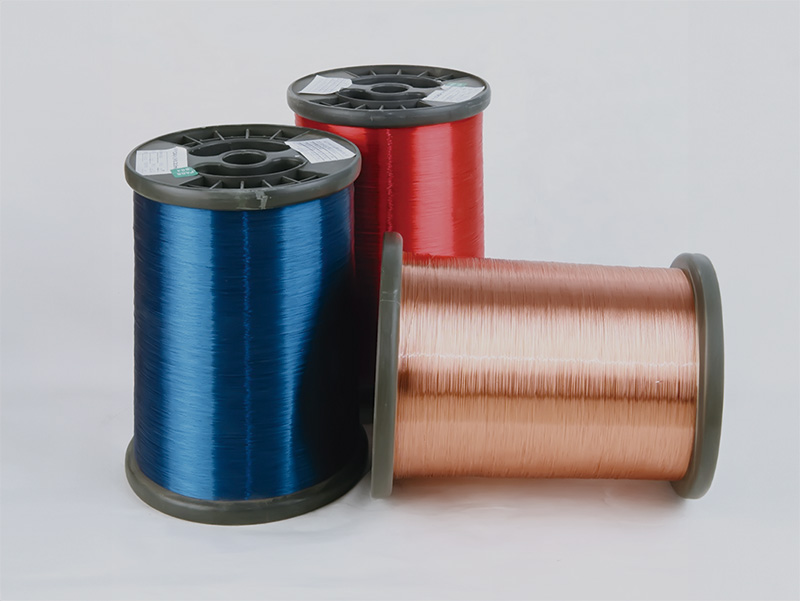

Applicable for: Enamelled wire, copper wire, tungsten wire, and other fine metal drawn wire outer diameter measurements.

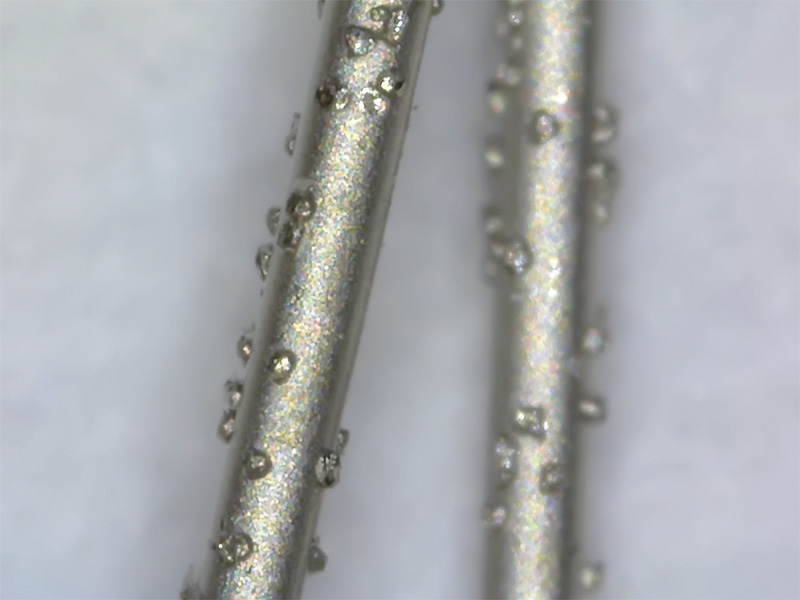

Not suitable for: Objects with excessive surface defects













Applicable for



Not suitable for

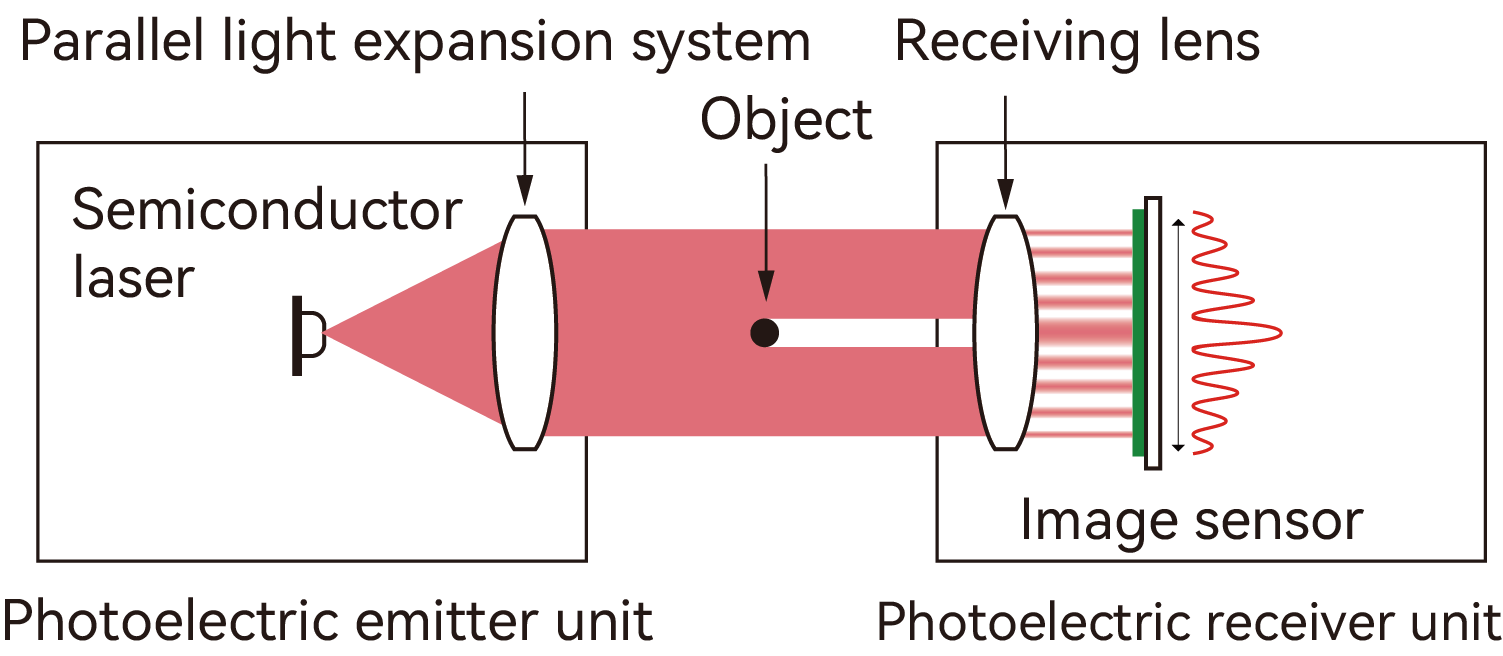

Fraunhofer diffraction principle








     When a laser passes through a certain-sized gap or small obstacle, it will deviate from its straight-line propagation, causing a diffraction phenomenon. This results in alternating light and dark stripes on the CCD image sensor. By analyzing the spatial distribution of these stripes, the size of the measured object can be calculated.





Detailed Parameters
Models LSG-100D
Number of axes 1axis
Minimum Resolution 0.0001mm
Measuring range 0.015-0.8mm
Accuracy ±0.3μm±0.02%*D
Repeatability ±0.1μm±0.005%*D
Alarm output 24V，300mA(contact load)
Communication RS-485/MODBUS
PI control Optional
Power supply DC 12V， 1A
Display method LCD display
transparent materials Supports
Ambient Temperature 0 to +50℃(32 to 122°F)
Ambient Humidity 35% to 85% RH, No condensation
Dimensions 148×94×33(mm)
