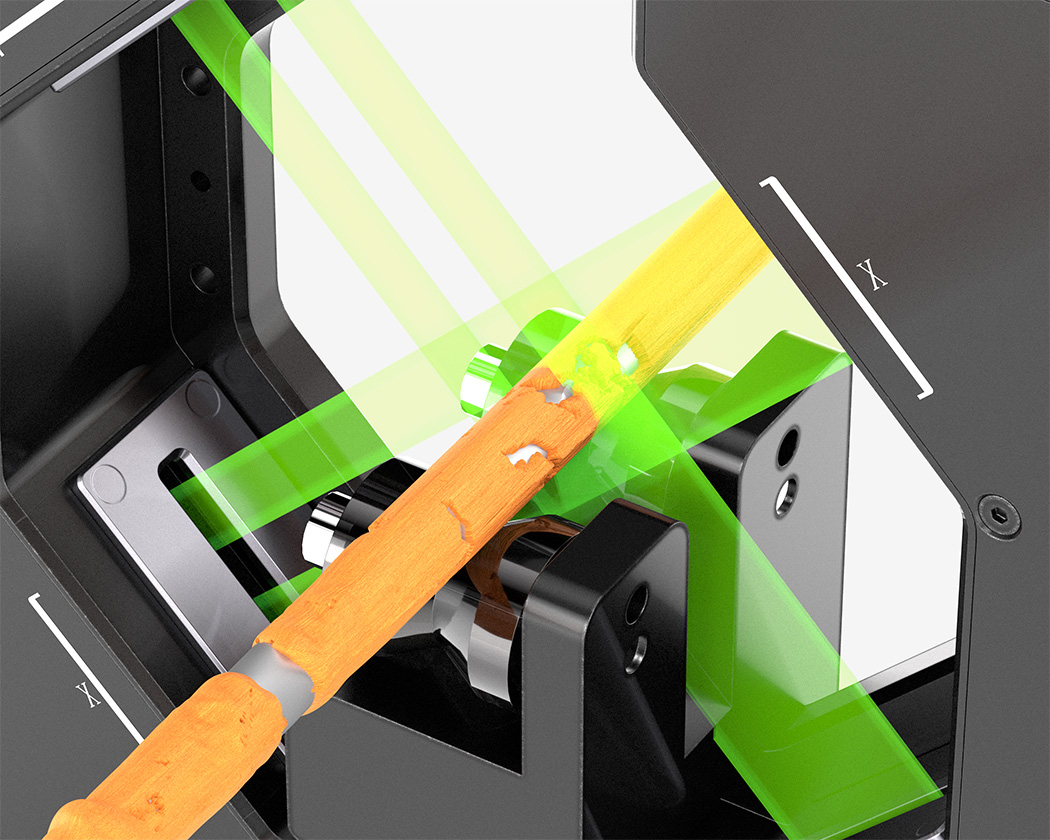

The LCG series, with its exceptional 10K samples per second detection frequency, allows a single device to perform both outer diameter measurement and surface defect detection, including raised or recessed particle defects. This reduces both equipment and maintenance costs.

High-Precision in High-Speed Production

The LCG series maintains extremely high detection accuracy even in high-speed production environments. For instance, at a line speed of 1000 m/min, the shortest distance between detected surface defects is approximately 1.67 mm, calculated as:

1000 m/min ÷ 10,000 samples/sec ≈ 1.67 mm

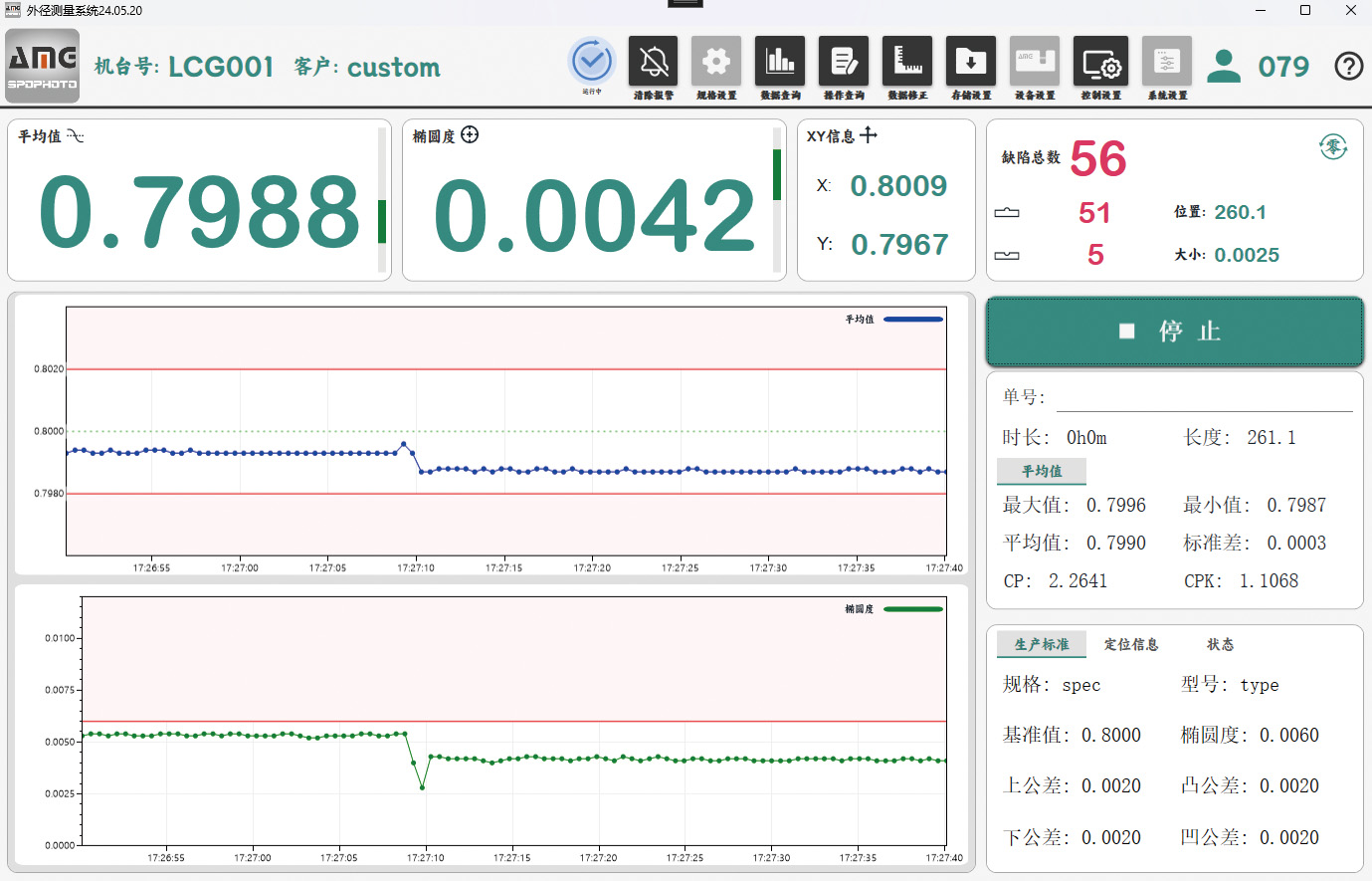

Software System Features
The software system works in real-time communication with the measurement device and offers the following functionalities:

1. Real-time data recording and display

2. Customizable tolerance alarms

3. Defect detection and recording
