LN Series Fine Wire Particle Defect Detection System

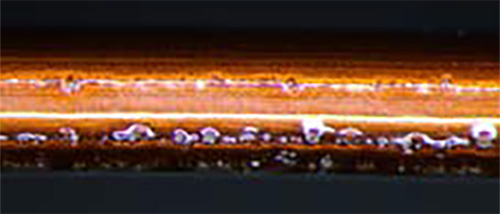

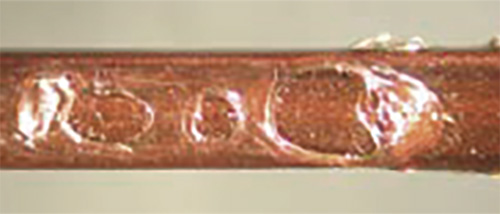

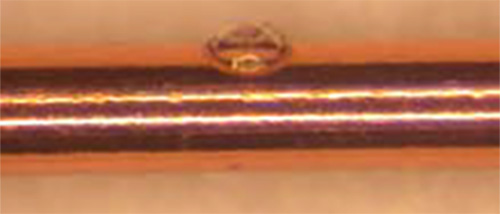

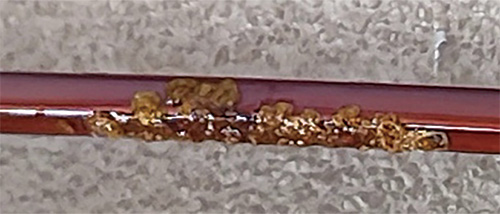

Suitable for non-contact detection of particles, bulges, necking, lumps, inclusions, scratches, coating delamination, and dents on fine wire surfaces.
Video

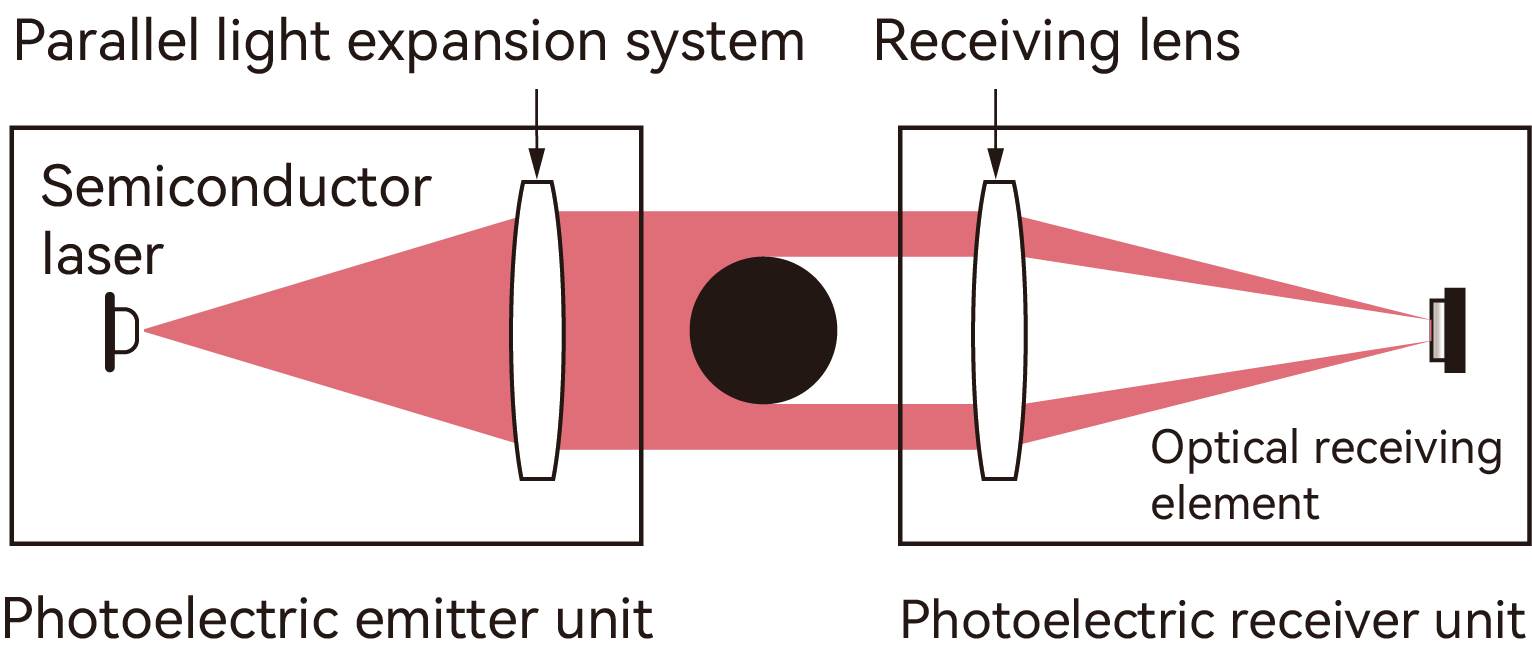

Principle Principle


The red LED emits a light source, which is converted into parallel light through an optical lens and passes through the test area. When the object under test enters the test area, it blocks part of the parallel light. This light is then focused by a lens and converted into an electric signal on the photoreceptor element. By analyzing the current differences in the photosensitive element, it can determine whether there are bumps or indentations on the object being tested.


LN-2000
Ultra-fast non-contact surface particle defect detection for fine round wires. A single control box supports 16 detection heads.





Applicable diameter range

0.05mm - 5mm

Applicable Line Speed
5-1500m/min
Convexity & Concavity Setting Range

0.002-0.999mm

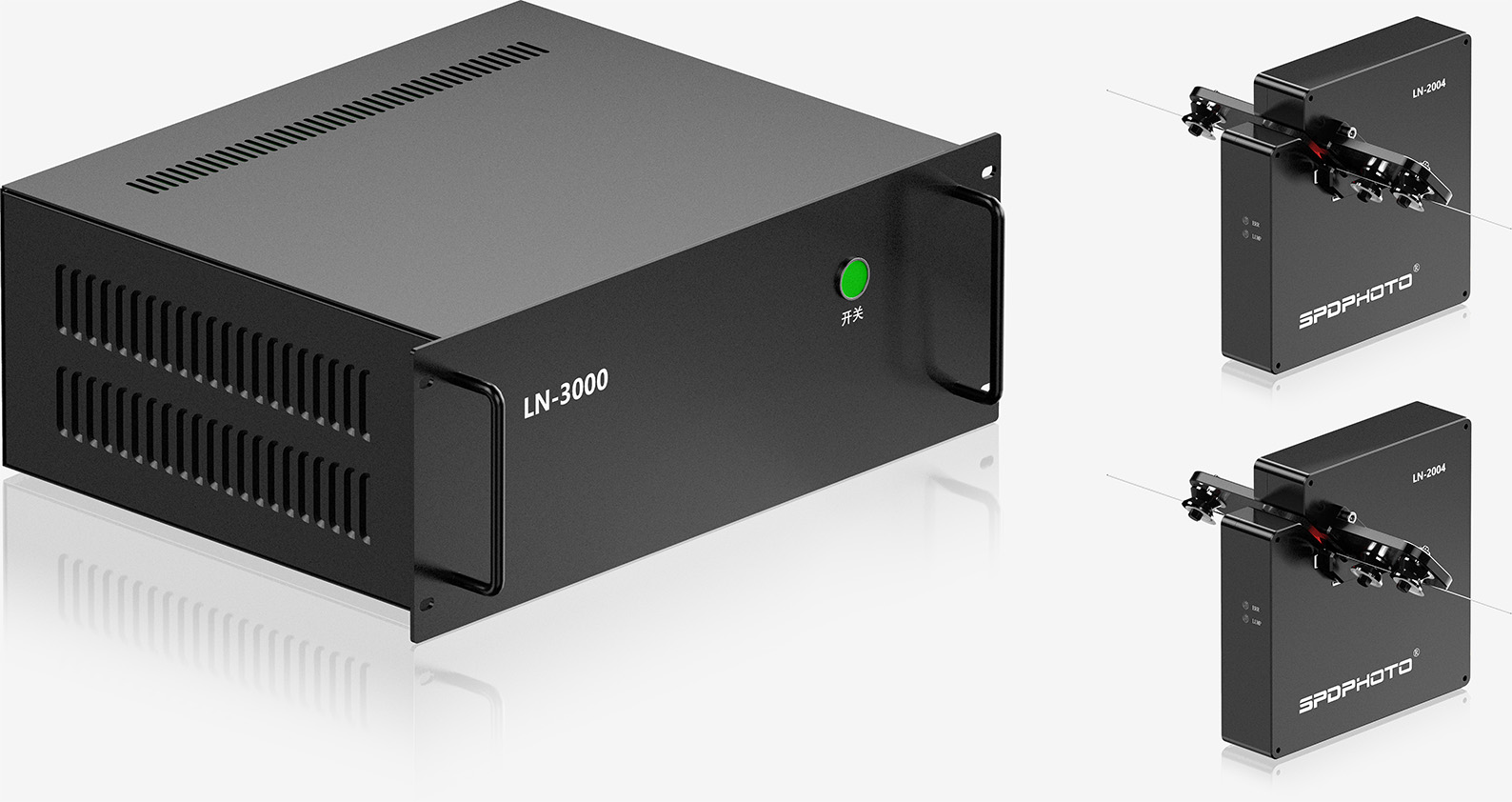

LN-3000
Dual-axis optical path detection: Smaller blind spots, ultra-high sampling frequency, and uninterrupted real-time detection. Supports 16 detection heads per control box.





Applicable diameter range

0.02mm - 0.5mm

Applicable Line Speed
5-1500m/min
Convexity & Concavity Setting Range

0.003-0.10mm

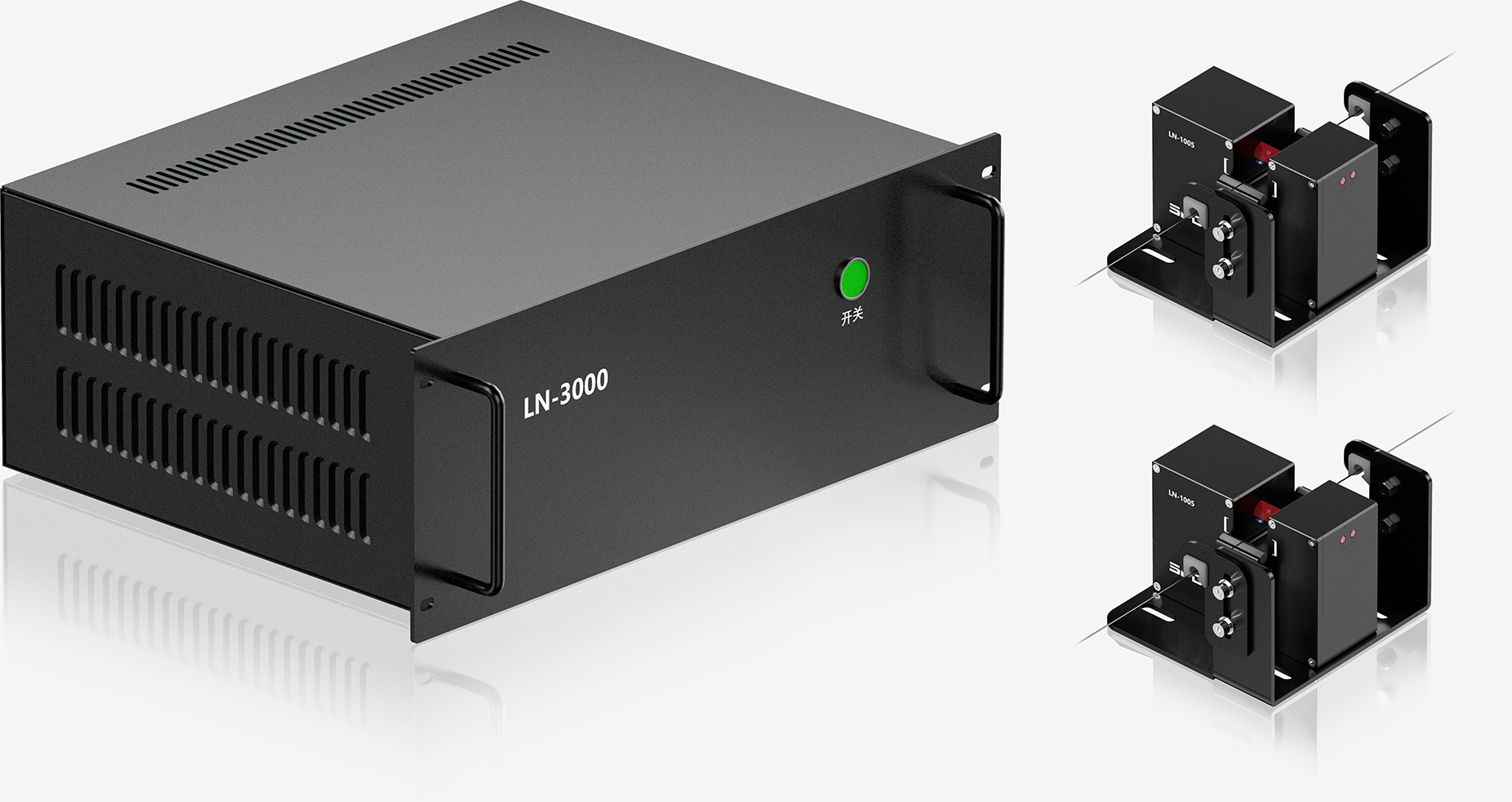

LN-3000
Dual-axis optical path detection: Smaller blind spots, ultra-high sampling frequency, and uninterrupted real-time detection. Supports 16 detection heads per control box.





Applicable diameter range

0.05mm - 2.0mm

Applicable Line Speed
5-1500m/min
Convexity & Concavity Setting Range

0.008-0.250mm


Measurement Modes
Surface Concave/Convex Particle Detection
Surface Concave/Convex Particle Detection
Application Scenario
Provides ultra-fast, non-contact particle defect detection for fine round and flat wires, ensuring precise real-time measurement even at high production speeds.
  • Surface defect detection
    Ultra-fast, non-contact particle defect detection for micro-fine round and flat wires.
  • Flexible and customizable auxiliary tooling options
    Customizable tooling adjusts easily for different wire sizes and applications, securing the wire to prevent vibration during measurement.
  • Multi head topology for networked detection
    Both instruments support multi-detector head topology for defect detection on multiple production lines.
Technical Features
Employs ultra-high-speed infrared detection technology to accurately pinpoint and analyze each defect.

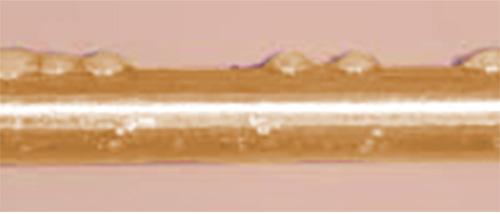

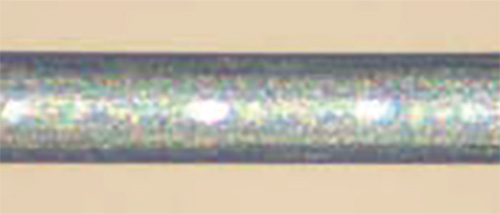

Common concave-convex defect detection

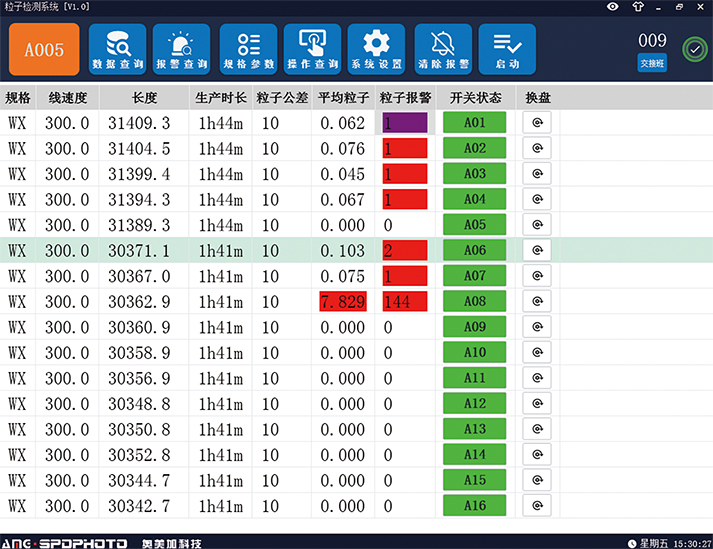

    Paired with an intelligent software system




Parameter Settings
Set specifications for the measured object.
Defect Value Display
Shows the number and location of surface defects.
Information Statistics
Displays overall detection results.
Operation Query
Tracks operator activity logs.
Historical Data Query & Export
Queries production data by date and generates charts for easy data visualization.

Detailed Parameters
Models LN-2000 LN-3000 LN-3000
Applicable wire diameter 0.05-5mm 0.02-0.5mm 0.05-2.0 mm
meature head LN-1005 LN-2004（A） LN-2004（B）
Number of axes 1axis 2axis 2axis
Line Speed 5-1500m/min 5-1500m/min 5-1500m/min
Lump and Neck Range 0.002-0.999mm 0.003-0.10mm 0.008-0.250mm
Accuracy ±1% of the set value ±1% of the set value ±1% of the set value
sampling frequency 200KHz 200KHz 200KHz
Alarm output 2 relay outputs 2 relay outputs 2 relay outputs
Communication RJ45(LAN)、RS485 RJ45(LAN) RJ45(LAN)
Power supply AC 220V，50Hz AC 220V，50Hz AC 220V，50Hz
Signal output 16 channels of convex and concave defect signal output 16 channels of convex and concave defect signal output 16 channels of convex and concave defect signal output
Signal input 16 channels of signal input 16 channels of signal input 16 channels of signal input
Display method PC PC PC
Maximum connections 16 measurement heads 16 measurement heads 16 measurement heads
Data collection and analysis Professional analysis software Professional analysis software Professional analysis software
Ambient Temperature 0 to +50℃(32 to 122°F) 0 to +50℃(32 to 122°F) 0 to +50℃(32 to 122°F)
Ambient Humidity 35% to 85% RH, No condensation 35% to 85% RH, No condensation 35% to 85% RH, No condensation
Measurement Host Dimensions 482x362.5x176(mm) 482x362.5x176(mm) 482x362.5x176(mm)
Dimensions 110x72.5x105(mm) 123x123x25(mm) 123x123x25(mm)
