The multi-sensor network enables simultaneous measurements, boosting accuracy and throughput
It can simultaneously monitor 48 production lines in real-time. The non-contact laser measurement causes no damage to the wire, and does not require shutdown for inspection, greatly improving production efficiency and product quality.
LEARN MORE
Economical and efficient multi-wire inspection solution
The LSG-6000 inspection laser measurement and control system is suitable for production lines with 1 to 40 wires. The detection speed can range from 3 to 10 seconds per wire and can be adjusted according to site conditions to flexibly meet different production requirements.
LEARN MORE
Portable quality inspection sampling solution for inspectors
The handheld measuring device enables quick, flexible measurements without spatial constraints, allowing inspectors to perform checks anytime. It is durable and offers long-lasting battery life.
LEARN MORE
Measurement of ultra-fine wires in high-speed production
It accommodates a wide range of line speeds and ensures accurate detection of even the smallest dimensions. The minimum detectable size is 0.01mm.
LEARN MORE
High-Speed Scanning and Comprehensive Multi-Point Measurement
Driven by a high-speed motor, the LSG-5000 series rotates 360 degrees to scan the clamped wire, performing precise measurements at over 100 points in just 2-3 seconds.
LEARN MORE
Multi-wire production surface irregularity detection
In multi-wire production, defect detection for surface irregularities is crucial. The LN-1005 and LN-2004 detectors can be connected to a controller to form a multi-wire simultaneous detection system.
LEARN MORE
Real-time Monitoring in Drawing Process
The dual-axis measurement system can measure the diameters in both X and Y directions. By subtracting the two, it can easily calculate the ovality of rod-shaped materials.
LEARN MORE
Enamelled Wire Surface Defect and Pinhole Detection Solution
The high-voltage pinhole particle defect detection system combines the HV series high-voltage pinhole detection system with the LN series fine wire particle defect detector, offering a comprehensive solution for simultaneously detecting high-voltage pinholes and fine wire surface defects.
LEARN MORE
Enamel Insulation Pinhole Detection
The HV-1000 is a high-voltage detection system designed specifically for detecting insulation defects in enamelled wires. It generates adjustable DC high voltages ranging from 200V to 3000V.
LEARN MORE
High-speed detection of vibrating wire materials.
With a sampling frequency of up to 5kHz on a single axis, the system can accurately capture and identify the diameter of line materials even when they are vibrating.
LEARN MORE
Simultaneous Surface Defect and Outer Diameter Measurement
The LCG series, with its exceptional 10K samples per second detection frequency, allows a single device to perform both outer diameter measurement and surface defect detection, including raised or recessed particle defects. This reduces both equipment and maintenance costs.
LEARN MORE
Even with wire vibration, accurate measurement is ensured
Thanks to a sampling frequency of up to 10KHz, the LCG series can precisely measure the outer diameter of wires during high-speed production.
LEARN MORE
Measurement of transparent materials like optical fibers
It can measure the outer diameter of transparent materials such as optical fibers.
LEARN MORE

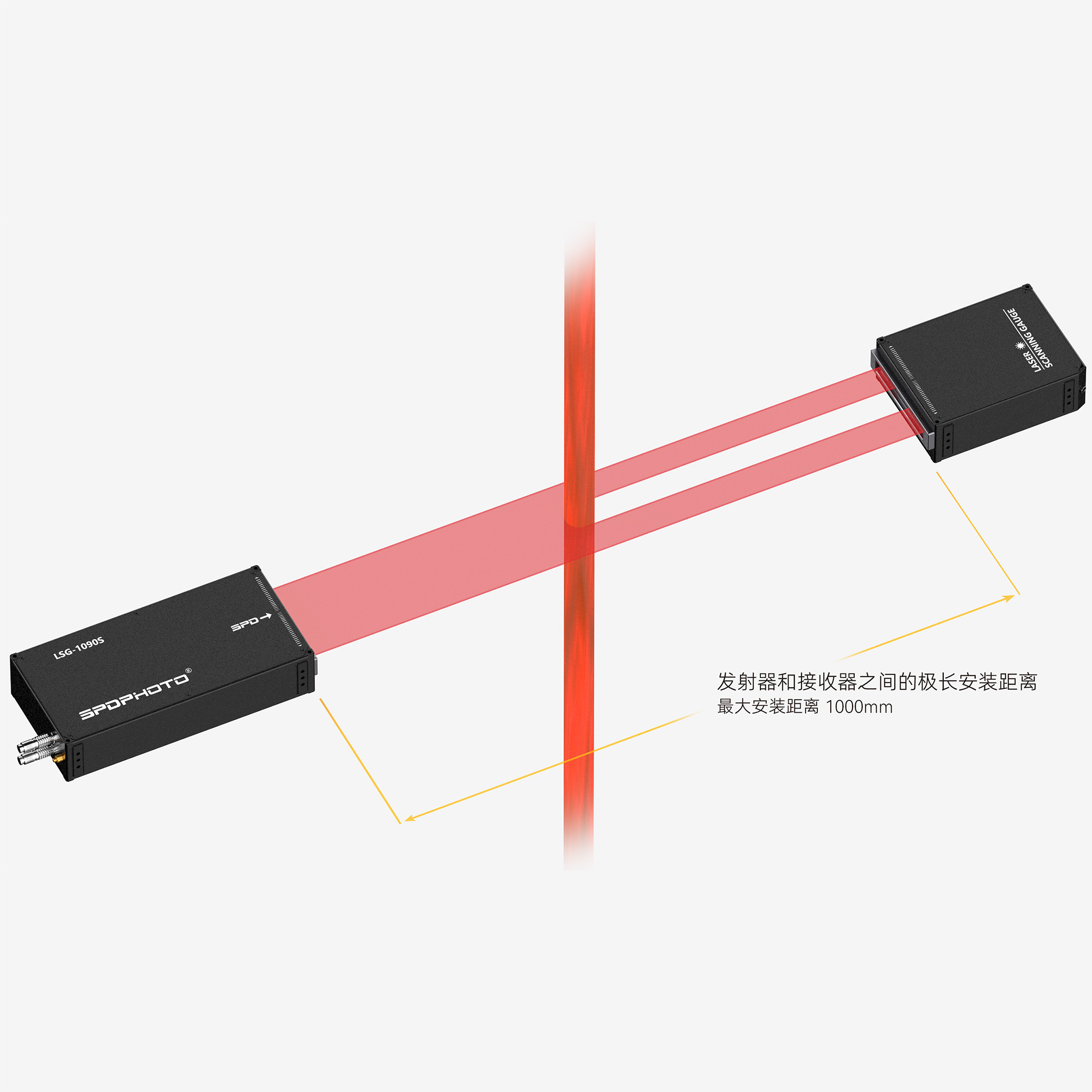

Modular Diameter Measurement
The LSG series multifunctional diameter gauge supports modular collaboration, enabling multiple measurement modules to work together and sample at different positions simultaneously.
LEARN MORE
Surface Defect Detection
Using a high-speed three-axis detection mode, the system significantly broadens the coverage of the object being measured, making the detection process more detailed, precise, and comprehensive. This improves both the quality and effectiveness of the inspection.
LEARN MORE
Wavecrest and Valley Measurement of Corrugated Tubes
Ultra-high-speed sampling for precise capture of peak and valley values.
LEARN MORE
Flat Wire-Specific Dimension Measurement
The LSG-1020XY flat wire diameter gauge features an independently designed laser scanning system, enabling high-precision, non-contact online or offline measurement. Its advanced edge detection technology excels in inspecting flat products, ensuring both accuracy and efficiency in measurements.
LEARN MORE
Stable and efficient guide wheel system
The LSG-7000 inspection system is made from durable aluminum alloy, offering high integrity and robustness. It is equipped with custom guide wheel sets and a rotating clamping device tailored to the customer's wire dimensions.
LEARN MORE
Flat Wire Surface Defect Detection System
With a customized ultra-high sampling frequency, this system detects surface defects like bumps and particles on flat wires. The tailored software triggers alarm signals and records defect location, size, and type.
LEARN MORE
Swinging Flat Wire Measurement
The LSG-7000 swinging flat wire gauge performs reciprocal swinging within a specific angle around the target material. The laser sensors on the X and Y axes capture the minimum width in the vertical direction and the minimum thickness in the horizontal direction, ensuring accurate measurement even with wire movement.
LEARN MORE
Dual-Axis Measurement of Roundness, Width, and Thickness
By measuring the diameter in two directions, ovality (ellipticity) of rod-shaped materials can be easily calculated.
LEARN MORE
Flat Wire Surface Defect Detection
Custom high-speed sampling frequency accurately identifies the location and size of surface convex and concave defects on flat wires. Simultaneously measures width and thickness while detecting surface particle defects.
LEARN MORE
Product appearance inspection
With precise edge recognition technology, it can identify defective products.
LEARN MORE
Accurate Detection of Transparent Objects
Using non-contact laser measurement principles, this system is ideal for measuring transparent objects, fragile items, and soft materials. It accurately detects the outer diameter, and by rotating the object, it can also measure the circumference and ovality.
LEARN MORE
Filter Tip Detection for Tobacco Products
Non-contact measurement using laser measurement principles, suitable for measuring soft filter tips. Custom flexible fixtures prevent deformation of the measured object. Accurately detects outer diameter, and by rotating the object, measures circumference and ovality.
LEARN MORE
Pin Size and Gap Measurement
Efficient pin pitch positioning and detection help improve the manufacturing process, assist in screening, and increase the yield rate.
LEARN MORE
Wafer roundness measurement
Detect the wafer edge shape and measure roundness through edge value changes.
LEARN MORE
Roll Gap Measurement
Real-time accurate roll gap width measurement improves rolling precision and assists in automated rolling control.
LEARN MORE
Solar Panel Width Measurement
Measures the width of ultra-wide flat strips, monitors the edge position of large-size films or flat materials, and provides continuous width data measurement. High precision and fast response.
LEARN MORE
Runout Detection of End Mills and Drills
Measures the outer diameter of drill bits and monitors runout during workpiece rotation, ensuring dynamic precision. Optimized measurement for specific workpiece types to enhance accuracy.
LEARN MORE
Combined Measurement Solution for Large Pipes
In the production of large PVC pipes, it's crucial to control both the diameter and ovality. A combined measurement solution can be used to ensure precise and consistent measurement of these parameters during the production process.
LEARN MORE
Dual-Axis Detection for Pipe Measurement
By measuring the diameters in two directions, this method easily calculates the ovality of cylindrical objects. It enables real-time, online measurement of rod-shaped materials, providing accurate and reliable data.
LEARN MORE
Measurement of Spacing and Dimensions of Multiple Workpieces
Supports large measurement areas for measuring distances between pins or workpieces, as well as the dimensions of individual pins or components. Suitable for special workpieces and electronic components.
LEARN MORE
Width Measurement of Ultra-Wide Steel Plates
Continuous width measurement and edge position monitoring for large-size films or flat materials.
LEARN MORE
Film Thickness Control
By continuously measuring the film's thickness during production and feeding the data back to the control system, the roller gap can be automatically adjusted. This reduces labor costs, minimizes downtime, eliminates human errors, and improves both production efficiency and product quality.
LEARN MORE
Camshaft Precision Measurement
For the complex and critical measurement requirements of camshafts, the LSG series multifunctional diameter gauges offer segmented positioning detection, continuous data output, and anomaly alerts to ensure high-precision edge detection and quick response.
LEARN MORE
Ultra-Wide Workpiece Measurement
For large workpieces, the LSG series multifunctional diameter gauges allow coordinated sampling between modules, enabling multiple measurement modules to work together and sample at different positions simultaneously.
LEARN MORE
High-Temperature Remote Measurement
The LSG series multifunctional diameter gauges provide a remote installation solution to meet the measurement needs of high-temperature workpieces, ensuring stable, safe, and high-precision measurements even in high-temperature environments.
LEARN MORE
